How to Choose the Right Forklift Battery

Electric forklifts are generally powered by either of these two main types of batteries:
Lead acid
Lithium-ion
While there are other power options for forklifts, such as propane or diesel, or gas power, 2/3rds that are put into service each year are electric.The technology behind each of these industrial batteries differs greatly, and therefore, has a different impact on forklift efficiency.
Lead acid batteries are the old-school standard for powering forklifts. They are bulky, liquid-filled units with a removable top that generates electricity via a chemical reaction of lead plates and sulfuric acid. Its technology goes back to 1859 and involves regularly refilling the units with water (which is also necessary for the electricity-generating chemical processes happening within). Lithium-ion batteries are a newer technology, having been first used in a commercial product in the early 1990s, a Sony camcorder. Lithium-ion batteries have many different chemistries. One of the most popular chemistries for the material handling industry is lithium iron phosphate (LFP). It is more compact and energy dense than lead acid. The cells are sealed shut and require no water maintenance.
Length of a Forklift Battery’s Service Life Like any business expense, electric forklift batteries are a cost that needs to be dealt with regularly. Which type of battery a company uses in its forklifts determines how often workers will have to replace the battery. Lead acid and lithium-ion batteries have different lifespans:
Lead acid: 1000 - 1500 cycles
Lithium-ion: 3500 cycles
These are averages and may vary based on how well the batteries are maintained.A lithium-ion forklift battery needs to be replaced less frequently, which is a major driver for business owners to prefer them to conventional lead acid batteries – which need to be replaced out for new ones more often.
Maintaining Forklift Battery Capacity
Both lithium-ion batteries and their lead acid counterparts should be cared for properly if they are to perform up to their full potential. Their service life will diminish if proper forklift battery maintenance is not carried out as it should be.
In order to maximize service life and overall battery capacity, certain measures should be taken for users of both battery types. However, lead acid batteries require more care and attention compared to lithium-ion.
Lead acid forklift batteries require:
Equalizing (Cell Balancing): Traditional technology like this leads to a frequent state where the acid and water inside become stratified (separated horizontally with the acid more concentrated closer to the bottom). This state forms sulfate crystals towards the bottom of the cells and weakens their ability to hold a charge. Equalizing will break up the sulfate crystals but if the battery has been neglected for too long the crystals will not break.
Temperature Control: Lead acid batteries must be kept within a certain temperature range, or else they will have a shorter working life. On top of that, they also get very hot while charging, which requires them to be charged and stored in a temperature-controlled space.
Fluid Level Management: These types of units must be checked to ensure they have enough water about once every 10 or so charging cycles.
Lithium-ion batteries are much less needy when it comes to forklift battery maintenance, as they equalize automatically, function well in much higher temperatures (making temperature mostly a non-issue), and do not require any fluid level management.

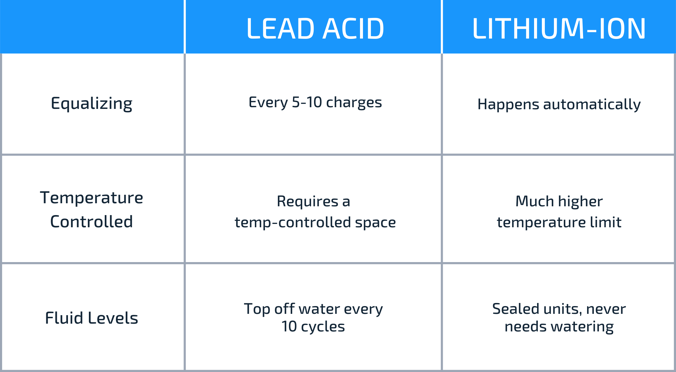

For comparison:

Knowing how to select the right forklift battery for your electric forklift or walkie / rider pallet trucks can be very easy.   Before your search, take note of the following:
1) what is the model and serial number of your electric forklift.
2) what are the measurements of the battery box.   Take a tape measure and measure length, width and height of the battery box.
3) is the forklift a 24, 36, or 48 volt unit?
4) how many hours a day does the forklift need to run?
With just this little bit of information you are on your way to selecting the right forklift battery for your forklift.   Go ahead and select the lift truck selector guide button above and it will lead you through the steps of choosing the right battery for your forklift.

Superpack can help you through any questions you may have about your current battery needs as well as help you plan for the future.
