Superpack cooperated witha famous Japaneseelectric power company in developing energy storage system - SPF48V240AH. It is widely used in the infrastructure facility of rush-repair.
As is known to all, Japan is prone to natural disasters such as earthquakes, volcanoes and tsunamis. The facilitydestruction and power outages often occur. Superpack aim to develop and produce energy storage system for the emergency for years. Eventually, we got orders from the famous electric power company in Japan.

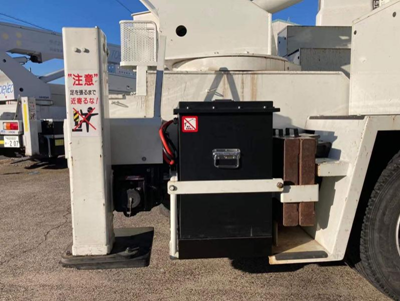

Application and Battery System Image
Main Application
* Construction Vehicle
* Emergency Power Supply
* Energy Storage
Main Application
* Construction Vehicle
* Emergency Power Supply
* Energy Storage
Main Parameter
|
Items |
Descriptions |
|
Battery Model |
SPF48V240-ST (LiFePO4) |
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
240AH |
|
Energy |
12KWH |
|
Fast Charge |
90A for 4hours (approx.) |
|
Maximum Continuous Discharge |
180A |
|
Impedance |
≤ 10mΩ |
|
Cycle Life |
≥ 2000cycles |
|
Calender Life |
Up to 6 years |
|
Weight |
112kg (approx.) |
|

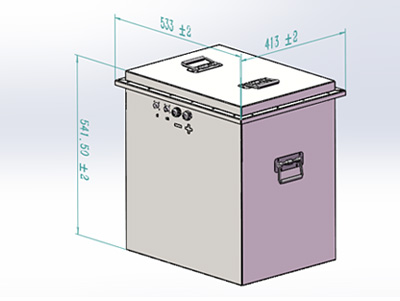

Dimensions |
L535*W415*H544mm |
|
Communication |
CAN2.0A/B |
|
Enclosure |
IP20 |
|
Certification |
UL1642, IEC62133 and UN38.3 |
