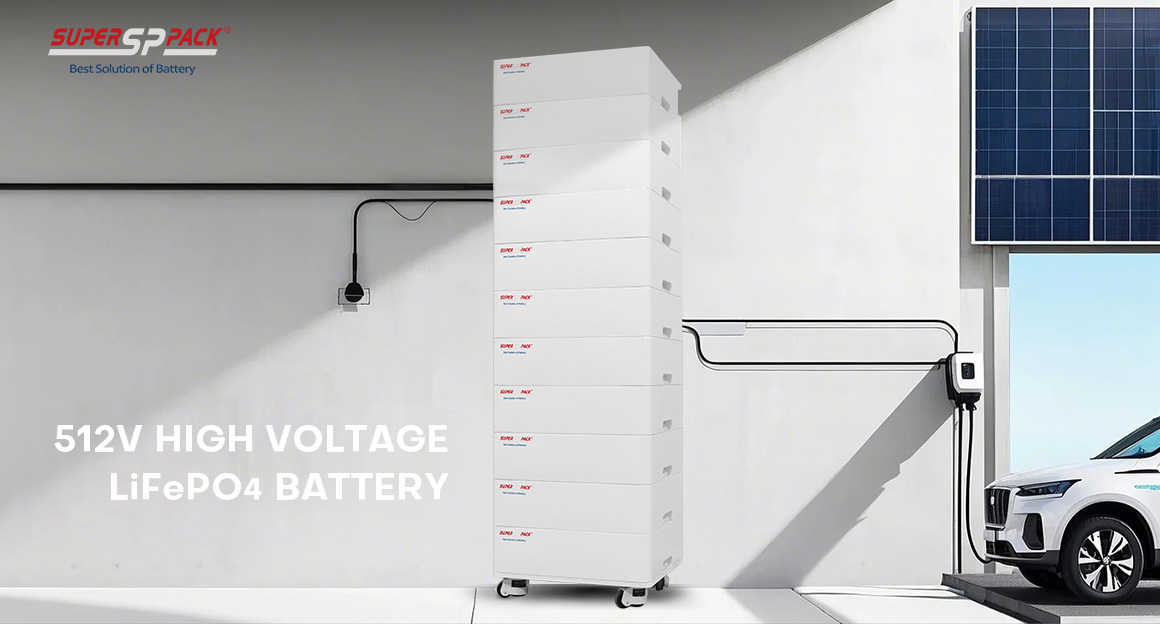

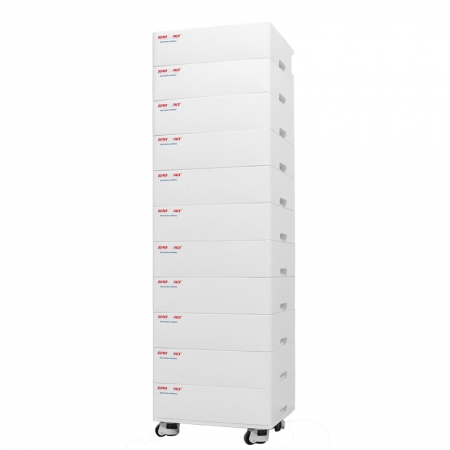

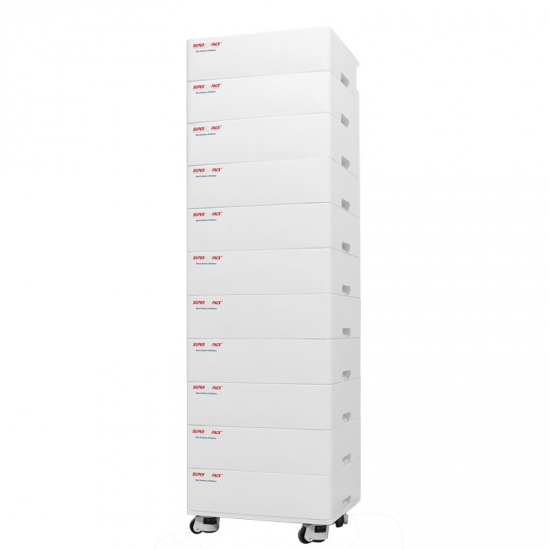

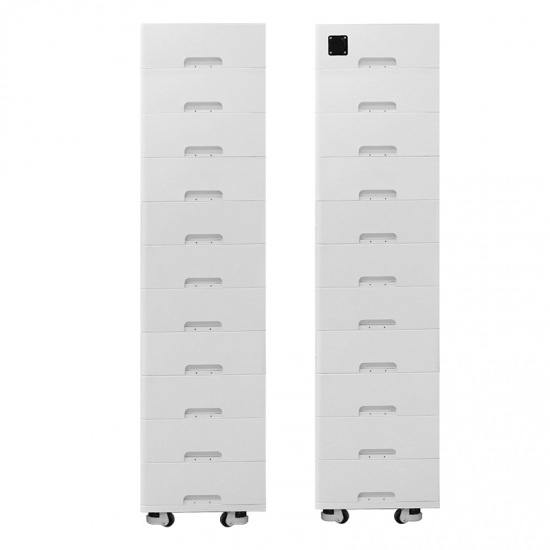

512V High Voltage LiFePO4 Battery Energy Storage System
The 10pcs 51.2V LiFePO4 battery module in series with a high-voltage (HV) battery controller delivers 512V of power in a compact package. Its modular design allows for easy installation, while RS485 and CANbus interfaces offer broad compatibility with various inverters. This flexible setup suits both on-grid and off-grid systems, providing a versatile energy solution for a wide range of applications.
Brand:
SuperpackItem NO.:
SPF512V150-HVProduct Origin:
ChinaColor:
whiteLead Time:
25-30 Working DaysWhen island power is insufficient or extreme weather strikes, the SPF512V150-HV high-voltage off-grid lithium battery pack can easily and efficiently power all your home appliances for a seamless work and entertainment experience. The Superpack off-grid lithium battery pack represents the ideal solution for home users as it provides long-term savings in energy costs and offers long-term operational safety and guaranteed long-term benefits.
Feature

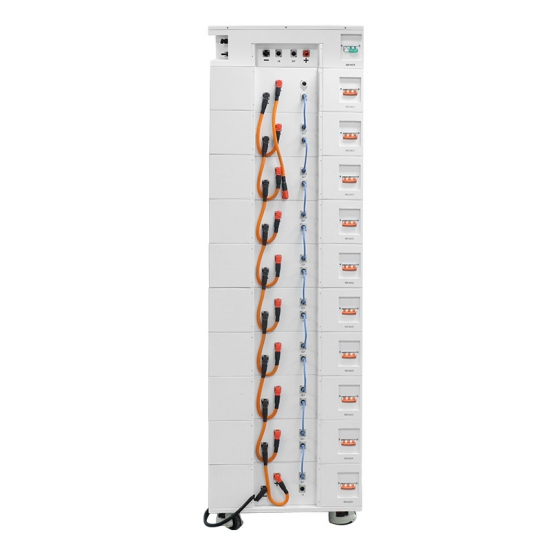

●10pcs 51.2V LiFePO4 battery module in series + 1pc HV controller, compact design.
●RS485/CANbus, compatible with main brand inverters.
●Easy to install.

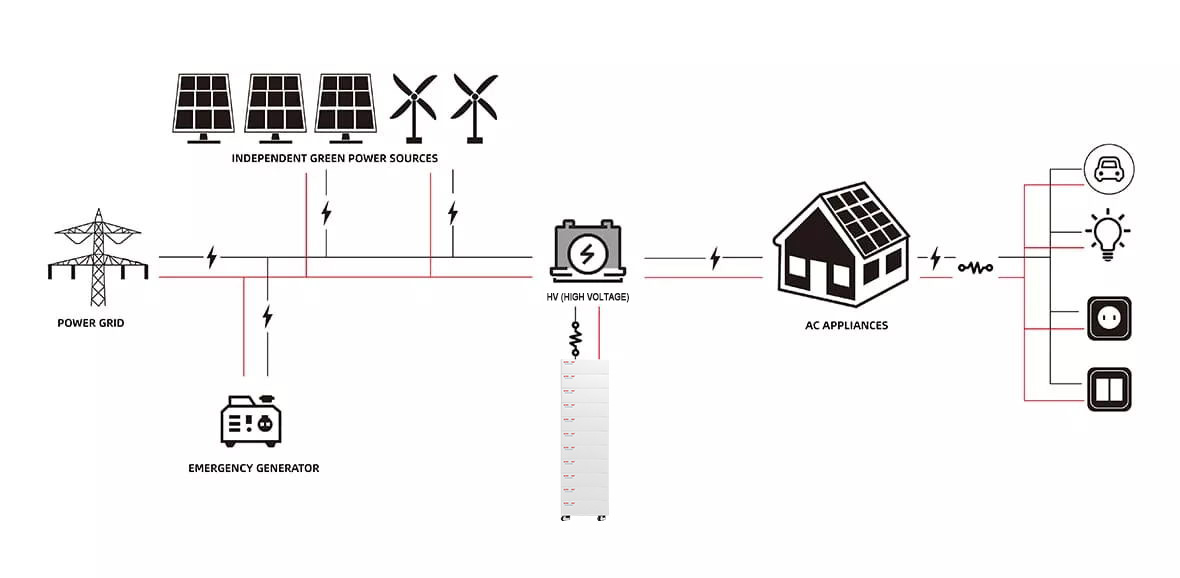

●Suitable for 3 phases on/off grid solar energy storage.
Superpack 512V energy-storage-system Product Specification
| Item | General Parameter |
| Model | SPF512V150-HV |
| Battery | LiFePO4 Battery |
| Battery Energy | SPF48V150Ah (10pcs in series) |
| Cell Chemistry | 76.8KWh |
| Nominal Voltage | 512V |
| Nominal Capacity | 150Ah |
| Maximum Charging Current | 150A |
| Maximum Continuous Discharge Current | 150A |
| Maximum Output Power | 76KW |
| HV Controller | 1pc |
| Weight | ≈622kg |
| Module Dimensions (L x W x H) | 614 x 500x 186mm |
| Module Weight | 60Kg(10pcs)+10Kg (1pc HV DC controller) |
| Operating Voltage Range | 448 ~576V |
| Cycle Life | 6000 cycles at 80% DOD |
| Designed Life-span | 10 years |
| Installation | Stacking mounted power cabinet |
| Communication | RS485/CANbus/Ethernet/WiFi |
| Charging Temperature Range | 0~50°C |
| Discharge Temperature Range | -20~60°C |
| Enclosure Protection | IP20 |
| Humidity | ≤85% |
| Altitude | ≤2000m |
| Application | In door / Out door |
| Inverter Choosing | On/Off Grid 3 phases inverter |
| Heat Management | Air cooling |
