Lithium Medical Batteries

The 12V Lithium ion Battery for Medical

Hospitals and clinics are designed as healing environments, with patient and caregiver safety a key aspect of fulfilling that mission. Due to the excellent safety and performance characteristics of lithium battery, it has been significantly used in many medical equipment.

Non-stop train
24 hour run time when charged during shift changes/breaks.
Long life
Battery will last as long as the equipment. No maintenance or servicing required, ever.
Easy to operate
Easy to carry out, power supply anywhere
Smart communication
Provides an accurate State of Charge using smart communications with the battery

Battery Solutions For Medical Carts

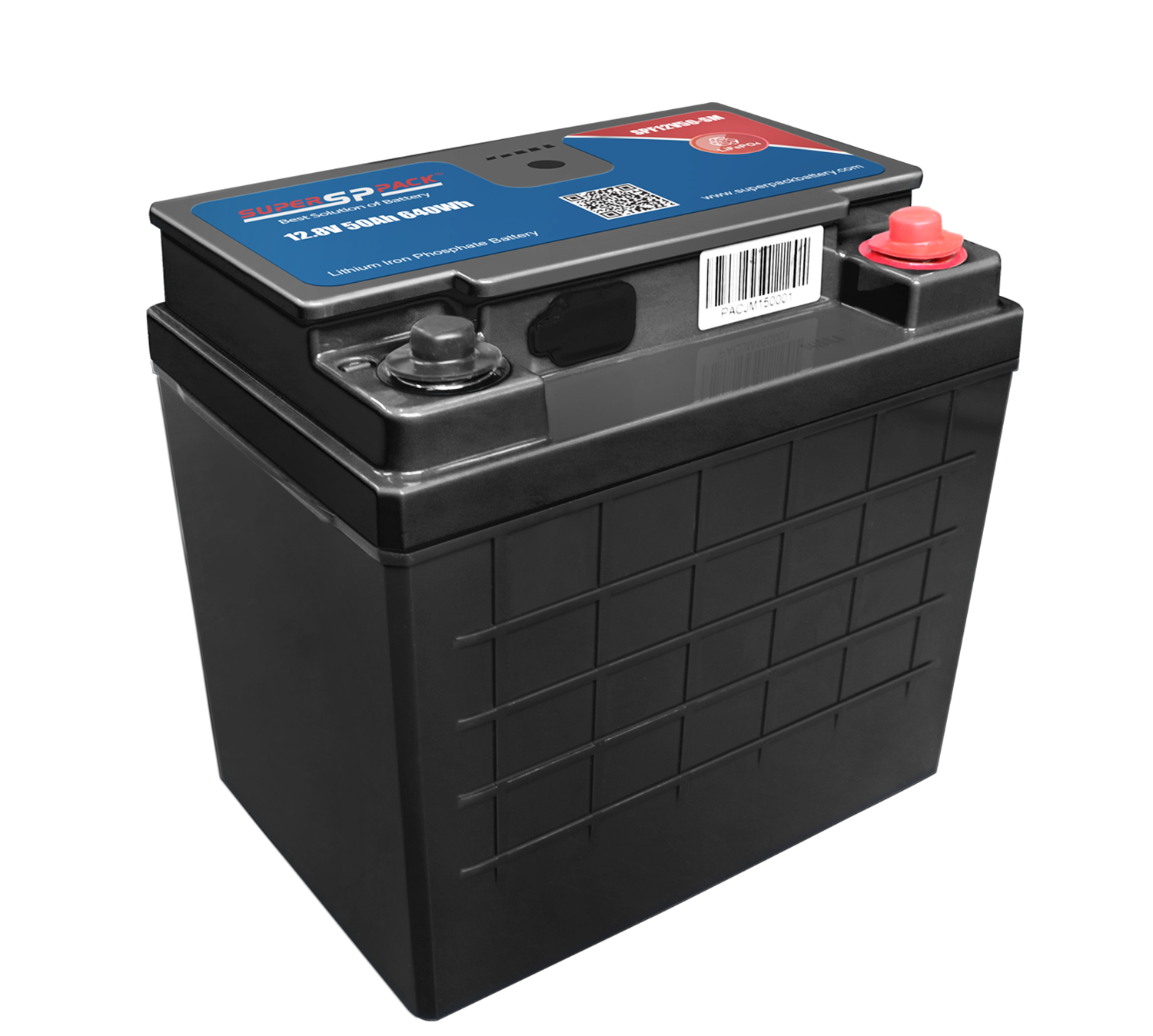

SPF12V50-SM, 12V 50Ah lithium ion battery pack with IFR26650EC LiFePO4 cells. The built-in battery management system (BMS) and RJ45 communication port allows host devices to communicate with the battery via SMBus. Important battery information such as Average Runtime to Empty (minutes), Relative State of Charge (%) and Cycle Count (#) is available enabling the battery to be an active part of any host device’s power management system. It is a perfect battery solution for medical cart and delivery robots etc.

Compact and only 40% of the weight of comparable lead acid batteries
Up to 10 times more cycles than lead acid batteries
Faster charging and lower self-discharge
Delivers twice the power of lead acid batteries
Safe chemistry cuts explosion risk from impact, overcharge, short circuit, or acids.
The BMS manages battery parameters for safety and performance optimization.
The battery will communicate ith most popular charging (power module) systems
Smart electrical design for enhanced temperature control

Lithium Batteries for Medical Applications

We custom high reliably lithium ion batteries designed for the medical industry, such as ECG machine, medical computer carts, defibrillator, MRI scanner and medical analyzers.

ECG machine is convenient for doctor to move indoor and outdoor operation, and providing continuous, efficient and stable lithium battery has become the biggest guarantee for the operation of such medical equipment. The LiFePO4 battery pack has the characteristics of energy density, light weight, small size, high cycle life, safety.
Medical computer cart with battery allows caregivers to bring computers to the patient'sa bedside. This enables them to enter data, update electronic health records (EHR) and use assistive medical devices. Lithium battery technology aims to solve the problems posed by lead-acid batteries, offering smaller, lighter battery, faster charging and discharging rates.
The advanced lithium battery particularly well suited for applications that require high sustained or pulse currents. Applications for portable medical devices that require Li-ion batteries include bone-growth stimulators, glucose monitoring systems, and portable automated external defibrillators.

LiFePO4 Battery

We custom high reliably lithium ion batteries designed for the medical industry, such as ECG machine, medical computer carts, defibrillator, MRI scanner and medical analyzers.

LiFePO4 Battery For Electric Wheelchair

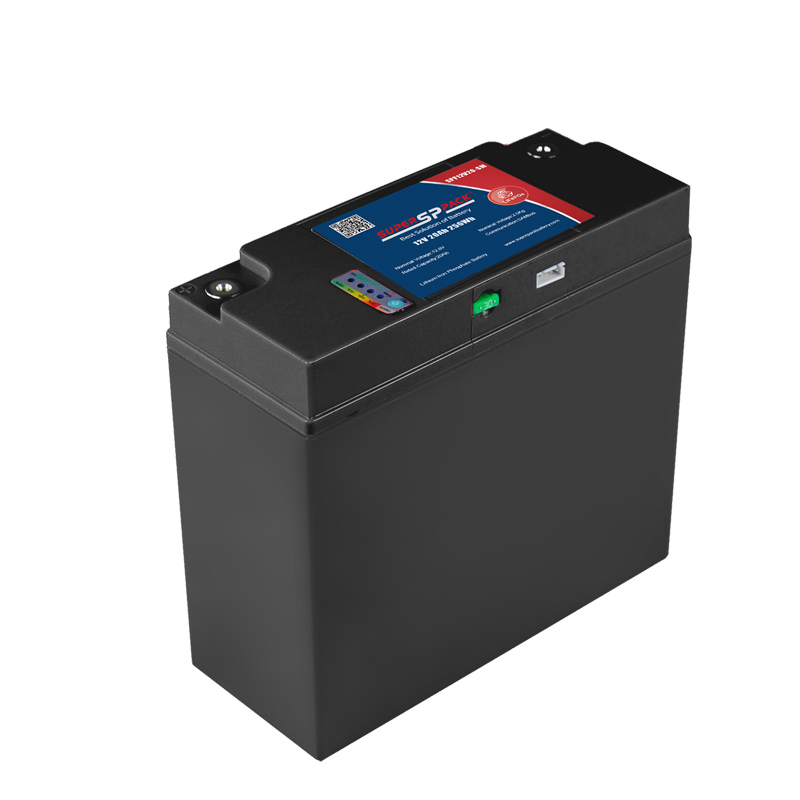

SPF12V20-SM
LiFePO4 Battery For Medical Cart

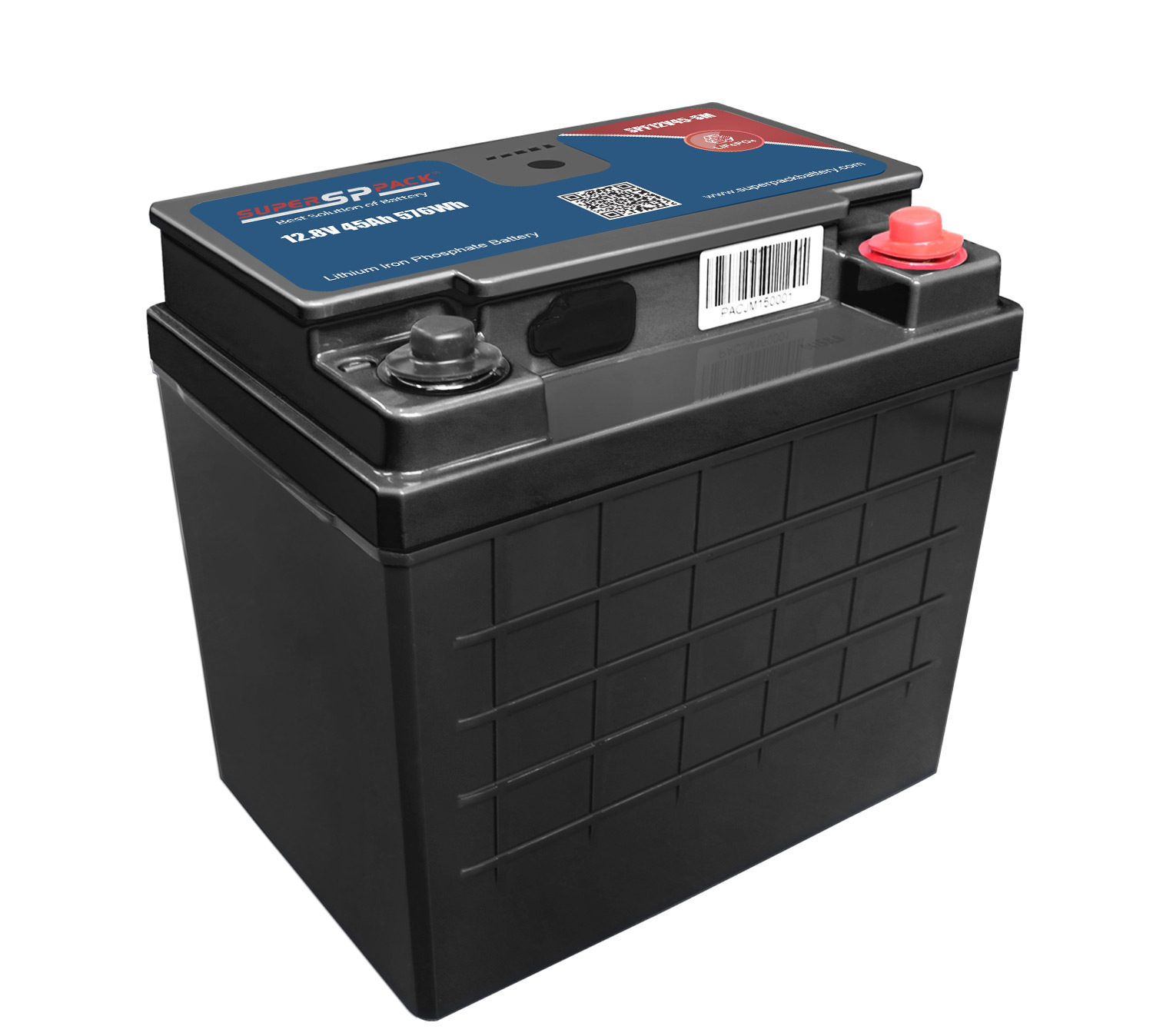

SPF12V45-SM
LiFePO4 Battery For Medical Cart
SPF12V50-SM
LiFePO4 Battery For Medical Cart

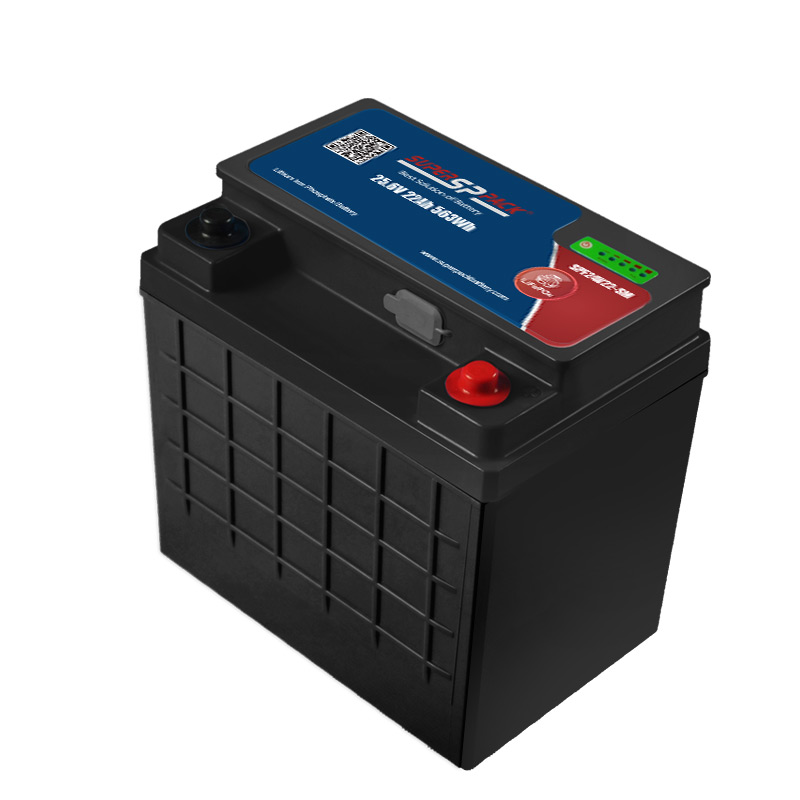

SPF24V22-SM
LiFePO4 Battery For Digital Radiography System

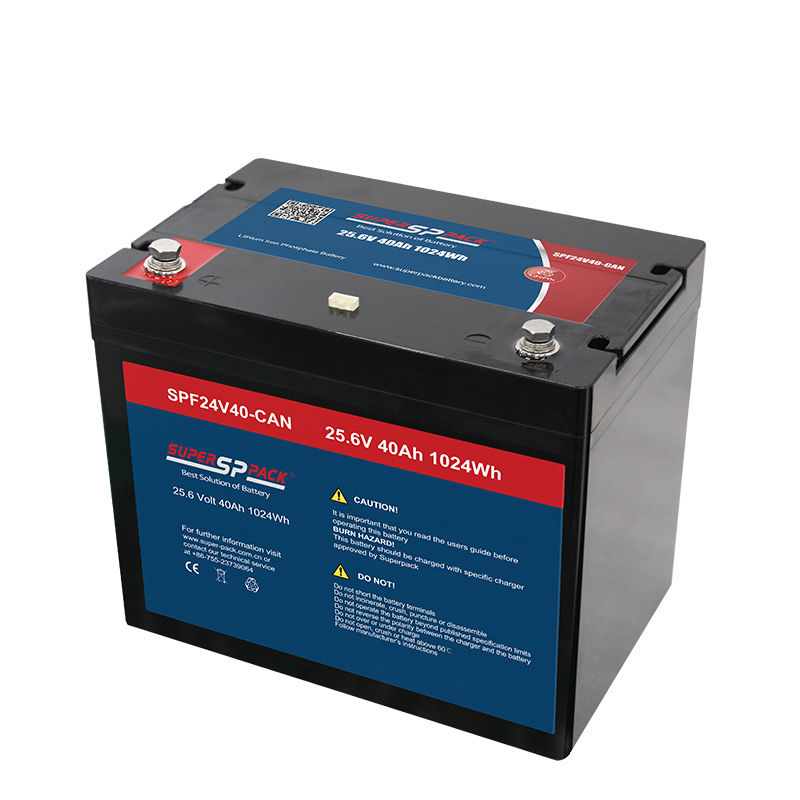

SPF24V40-CAN

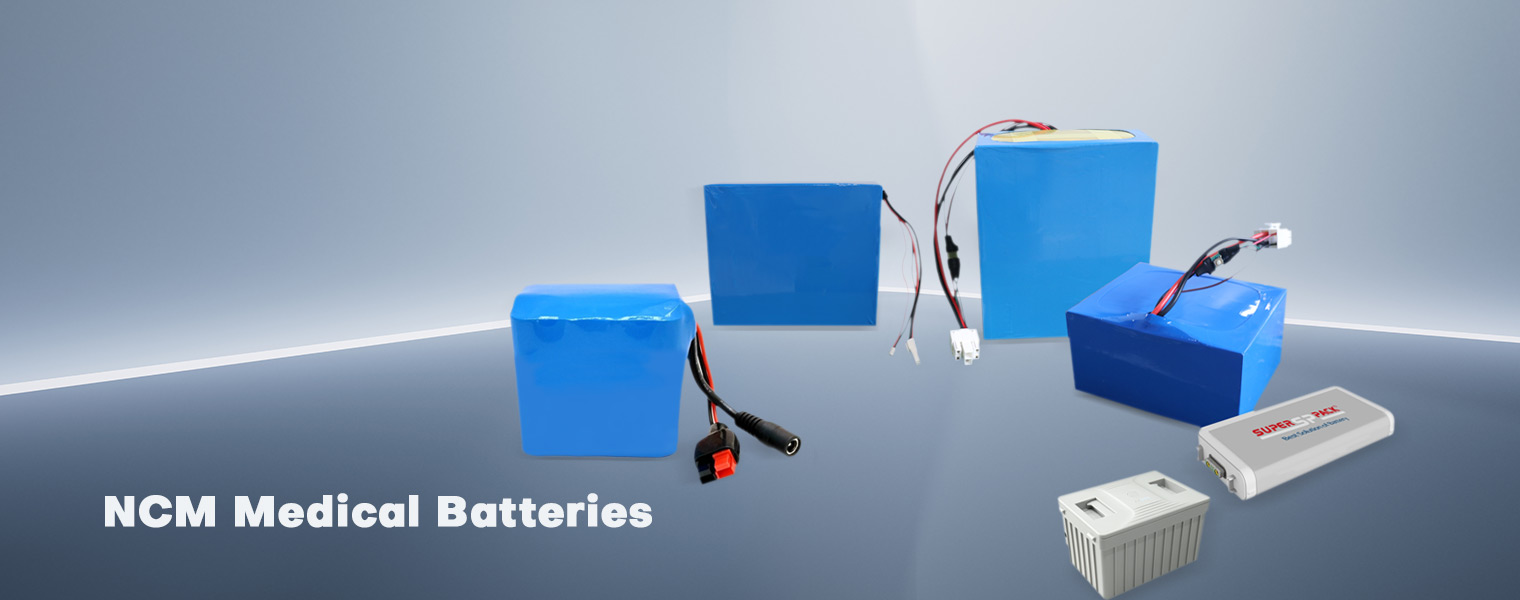

NCM Medical Batteries

Model	NCM10.8V2.2-LT	NCM10.8V2.2-LT	NCM14.4V5.2-ST	NCM14.4V5.2-LT	NCM21.6V3.4-SM
Nominal Voltage	10.8V	14.4V	14.4V	14.4V	21.6V
Nominal Capacity	2200mAh (23.76Wh)	2200mAh (23.76Wh)	2200mAh (23.76Wh)	5200mAh (74.88Wh)	3400mAh (73.44Wh)
Max. Continuous Discharge Current	3A @20℃	4A @20℃	4A @20℃	5A @20℃	5A @20℃
Max. Charge Voltage	12.6V	16.8V	16.8V	16.8V	25.2V
Max Charging Current	3A @20℃	4A @20℃	3A @20℃	3A @20℃	3A @20℃
Charge Temperature Range	0~45℃	0~45℃	0~45℃	0~45℃	0~45℃
Discharge Temperature Range	-40~55℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
Weight	138g	195g	195g	399g	330g
Dimensions (LxWxH)	56x19x72mm	38x21x138mm	75x38x72mm	75x38x72mm	75x38x72mm
Communication	N/A	N/A	N/A	N/A	N/A
Application	Infusion Pump	Infusion Pump	ECG Mornitor	Oxygen Generator/ Vital Signs Mornitor	Respirator Machine
Cycle Life	≥ 500 cycles
