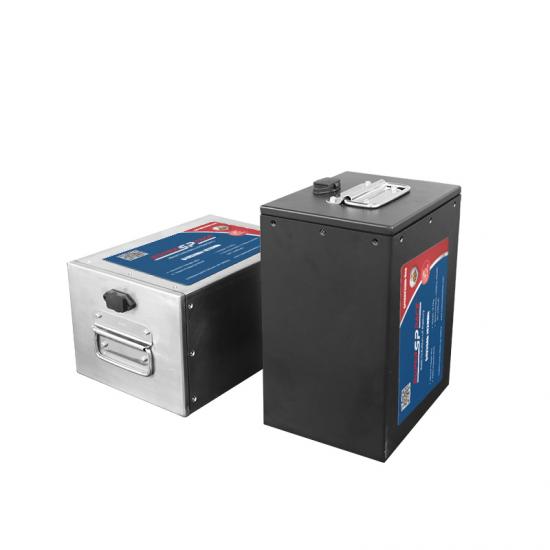

60v30 E-bicycle battery. With a driving range of 115km at a speed of 25km/h, this lightweight and powerful battery is designed to take your e-bicycle experience to the next level.
Brand:
SuperpackItem NO.:
SPF60V30Ah-DogProduct Origin:
ChinaColor:
Black/SilverLead Time:
25-30 Working DaysWhether you’re a daily commuter or a weekend adventurer, SPF60V30-Dog Battery is designed to elevate your e-bicycle experience in every way. Say goodbye to range anxiety and hello to endless riding possibilities with our advanced e-bicycle battery.
SPF60V30-Dog has very low self-discharge,Superpack Li-ion with first-class safety features.
Remarks: All the above batteries can be with communication function of CANbus, RS485, GPS, IOT, etc.
Parameters
|
Model |
SPF60V30Ah-Dog |
|
Electrical Performance |
|
|
Nominal Voltage |
64V |
|
Nominal Capacity |
30Ah |
|
Energy |
1920Wh |
|
Single Cell |
4.25AH/15AH |
|
Cycle life/0.2C |
>2000 Cycles |
|
Charging Performance |
|
|
Standard Charging |
9A |
|
Fast Charging |
30A |
|
Max Charging Voltage |
73V |
|
Charging Temp Range |
0~55°C |
|
Discharging Performance |
|
|
Standard Discharging |
9A |
|
Fast Discharging |
15A |
|
Super Fast Discharging |
30A (<15mins) |
|
Peak Discharging |
60A (<300S) |
|
Cut off Voltage |
>50V |
|
Discharging Temp Range |
-20~60°C |
|
Driving Rang |
115Km (25Km/h) |
|
Appearance Performance |
|
|

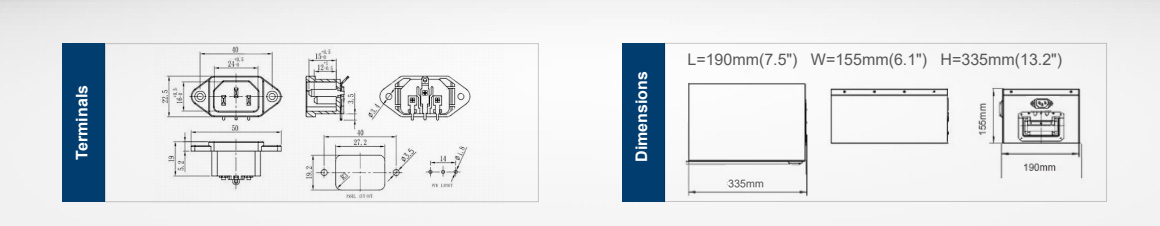

Dimensions(L*W*H) |
190*155*335mm |
|
Weight |
16.5Kg |
|

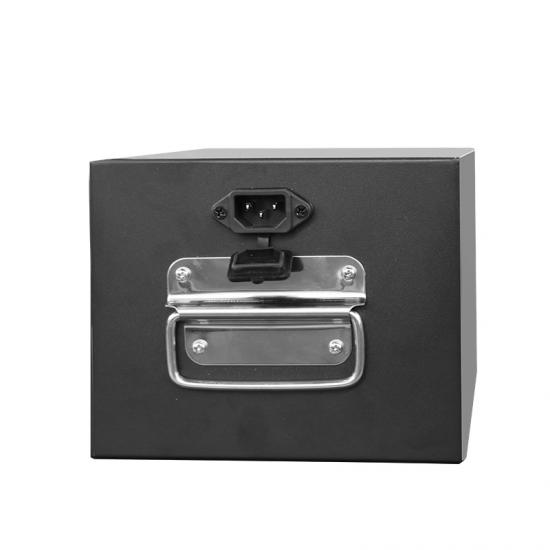

Charging Terminal |
Pin shaped terminal |
|
Discharging Terminal |
Pin shaped terminal |
|
IP Rating |
IP65 |
|
Case Material |
Stainless Steel 304 |
|
Communication Performance |
|
|
CAN II |
Available |
|
RS485 |
Available |
|
UART |
Available |
|
LCD Display |
Available |
|
Bluetooth |
Reserved |
|
GPS Port |
Reserved |
|
IOT Port |
Reserved |
