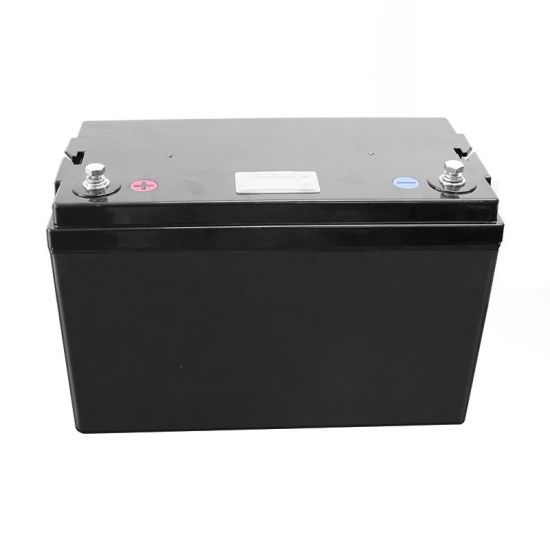

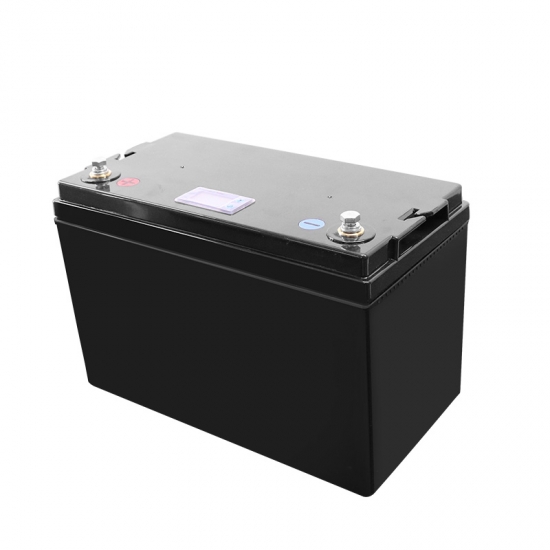

Superpack LiFePO4 12V 120Ah Off-grid Power With LED Capacity Display

Superpack LiFePO4  12V 120Ah Off-grid Power System With LED Capacity Display
Superpack LiFePO4  12V 120Ah Off-grid Power System With LED Capacity Display

Superpack LiFePO4 12V 120Ah Off-grid Power With LED Capacity Display

Long life deep cycle lithium battery for your RV, camper van, boat, solar, or off-grid application

  • Brand:

    Superpack
  • Product Details

Superpack LiFePO4 12V 120Ah Off-grid Power With LED Capacity Display

Superpack 12V100Ah high performance lithium iron phosphate battery with charge display allows you to see your charge usage at any time.    It is a safer, a more lightweight alternative to lead-acid in various marine,RV applications.



Features

Longer life compare to lead acid battery

◆  Up to 60% weight saving

 ◆  100% usable capacity

◆  More energy with 1/3 smaller size

 ◆  Less than 3% self discharging

 ◆High-quality lithium iron phosphate batteries, safe and reliable;

◆ High integrated with Easy installation

◆ Long life cycle, >3000 times at 80% DOD.

◆ Internal BMS with full protection, high voltage protection with higher reliability.

◆  Built in safety protection

◆  Zero maintenance

◆  Easy installation

◆  Eco-friendly

◆  Quality



Application


Parameter


Item

General Parameter

Remark

Rated Capacity

120Ah

Standard discharge0.2C after standard charge 0.2C

Minimum Capacity

114Ah

Nominal Voltage

12.8V



Life Expectation

Higher than 80% of the Initial Capacity of the battery

1)Charge:CC@0.2C to 14.6V, then CV till current to 0.05C
2)Rest: 30min.
3)Discharge: 0.2C to 10V
Temperature:20±5℃
Carry out 2000cycles

Discharge cut-off voltage

2.0V/Cell(≥8.0V)

10V (recommended)

Charge cut-off voltage

3.65V/Cell(≤14.6V)



Cell and assembly method

IFR26700



Housing material

ABS(black)



Standard charge 0.2C constant current (CC) charge to 14.6Vthen constant voltage (CV) 14.6V charge till charge current decline to ≤0.05C Charge time : Approx  7h
Standard discharge Constant current 0.2C,Cut-off voltage 10V
Maximum Charge Current 60A@20℃
Maximum Continuous Discharge Current 150A@20℃
Operation Temperature Range Charge: 0~45℃
Discharge: -20~60℃(cell surface temperature≤80℃) 60±25%R.H.
23 ± 5°C recommended
Storage Temperature Range Less than 1 year : 0~25℃(SOC≥50%) 60±25%R.H.
at the shipment state
Less than 3 months:-5~35℃(SOC≥50%)
Approx. Weight 13.9Kg
Internal resistance ≤10mΩ 1KHz,AC
Dimension L*W*H=(333*176*217mm)±2mm
Terminals M8  9.7±10%N.M
Fuel gauge LCD(Fuel gauge)
