This product is suitable for Trolling Motor, Goft Cart, Marine, Off Grid Applications, Household Appliances, Medical Equipment, Utility Vehicles, AGVs etc.
Brand:
SuperpackItem NO.:
SPF48V100-STProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working DaysSPF48V100-ST LiFePO4 Battery for Golf Carts, Motor, Boats
Golf cart batteries come in 24V, 36V, 48V, etc. Choose the best lithium battery for golf cart and get experience better golf cart handling, less wear and tear and lower maintenance costs.
The Superpack lithium-ion battery series is also suitable for golf carts, golf trolley, sightseeing cars, electric bicycles, electric scooters, etc. We have an experienced technical team to provide Li-ion battery solutions to meet different requirements.
Why Choose Superpack Lithium Golf Cart Batteries?
Support Customization
Superpack Lithium batteries for golf cart can be customized to meet different size, parameters and functional requirements. (Voltage, Current, Temperature, Capacity, Cycle Life etc.) Golf Cart battery pack are assembled by 3.2V Lithium iron phosphate battery cells, cycle life up to 2000 cycles@80% DOD.
Custom for Applications
We have developed a wide range of lithium battery solutions for different customized applications.
Reliable Service & Quality
More than 10 years of lithium battery solution provider, reliable service and quality.
Better Performance
Grade A battery cells combined with Bluetooth for golf battery that go further, life longer, greater adaptability, and usage smarter.
Ultra Safe
We have concentrated on BMS R&D for many years. Lithium batteries are 100% compatible and safe with BMS, ensure safety charging and discharging.
Widely Applications
50% lighter than lead acid battery of the same capacity. Ideal for 12V deep cycle applications in Caravans, Camper Trailers, Medical Devices, Motorhomes & Electric Mobility Scooter.
SPF48V100-ST Parameter:
|
Item |
General Parameter |
Remark |
|
Rated Capacity |
100Ah |
Standard discharge to 40V after standard charge (0.2C) to 57.6V |
|
Minimal Capacity |
96Ah |
|
|
Nominal Voltage |
51.2V |
|
|
Life Expectation |
Residual capacity is more than 60% of the rated capacity |
1) Charge: CC@0.2C to 57.6V, then CV till current to 0.05C |
|
Discharge cut-off voltage |
2.5V/cell（≥40.0V）
|
|
|
Charger constant voltage |
57.6V |
CC/CV charger for lithium ion battery is recommended |
|
Assembly method |
IFR26650EC-3.6Ah
|
16S28P (FYI)
|
|
Housing material |
Cold rolled steel sheet |
|
|
Standard charge |
0.2C constant current (CC) charge to 57.6V,then constant voltage (CV) 57.6V charge till charge current decline to ≤0.05C |
Charge time : Approx 7.0h |
|
Standard discharge |
Constant current 0.2C |
|
|
Maximum Charge Current |
50A@20℃
|
|
|
Maximum Discharge Current |
100A@20℃
|
Peak current 200A ≤10s |
|
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
Discharge: -20~60℃ |
||
|
Storage Temperature Range |
Less than 1 year: 0~25℃ |
60±25%R.H. |
|
Less than 3 months:-5~35℃ |
||
|
Approx. Weight |
58Kg |
|
|
Max. Dimension |
L832.4±3*W285±3*H255±3mm
|
|
|
Terminals |
Bolt M8*20mm |
|
|
Internal resistance |
≤20 mΩ @ 50% SOC
|
|
|
Communication protocol |
CAN, GX16-6
|
|
|
Batteries in series |
Single use only |
|

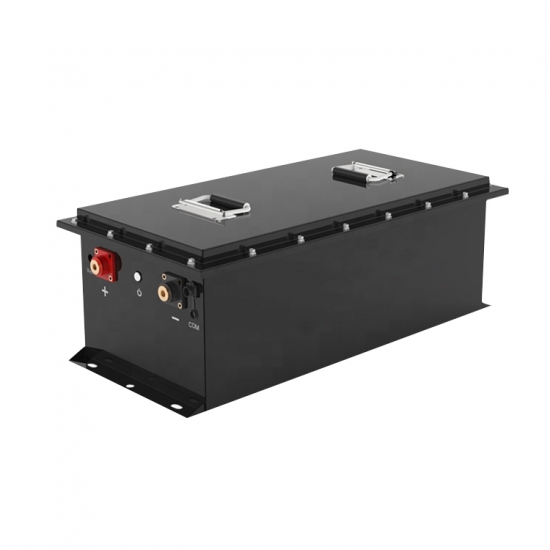

Deep Cycle Lithium LiFePO4 Battery 48V 100Ah with BMS
Learn More
GC2 LiFePo4 batteries are lithium iron phosphate-based and designed for easy replacement, commonly used in golf carts, scissor lifts, utility vehicles, and trolling motors. Known for their high energy density, these batteries offer reliable, long-lasting power. Their compact size and durable construction make them versatile and easy to maintain. GC2 LiFePo4 batteries also charge quickly, providing efficient energy for a variety of Golf cart and equipment.
Learn More
Tailored as a seamless replacement for conventional lead-acid batteries, it effortlessly integrates into your golf carts. The 72V45Ah epitomizes a state-of-the-art lithium-ion battery pack, boasting an integrated battery system. With the superior energy density of lithium batteries, golf carts can now achieve extended driving ranges and deliver enhanced power to tackle rigorous tasks.
Learn More
Superpack offers easy, plug-and-play LiFePO4 battery solutions for golf cart and utility vehicle. The batteries are with less weight, more power and free maintenance. You can enjoy more mileage on a single charge and stronger acceleration up hills with less charging time. At the same time you can save both money and time for a longer life span.
Learn More
Superpack's 48V56Ah batteries are designed to be easily installed in Club Car and EZ-GO vehicles, allowing for quick drop-in replacement. This simplifies the process of upgrading or replacing batteries without the need for complex modifications.
Learn More
Lithium iron phosphate power batteries are used in electric vehicles with long cycle life and stable performance.
Learn More
[High Capacity and Efficiency] Rated Capacity of 150Ah and a Minimum Capacity of 147Ah ensure that the battery can store and deliver substantial energy, making it ideal for extended use in golf carts and other electric vehicles. [BMS Multiple protection]The Superpack 48V 150Ah golf cart battery features a unique built-in Battery Management System (BMS) that delivers robust protection against overcharging, over-discharging, overcurrent, short circuits, and temperature extremes. This ensures enhanced safety and reliability for your battery during operation. [Cycle Life] Over 4000 cycles, significantly surpassing traditional lead-acid batteries (300-500 cycles), which reduces long-term replacement costs.
