GC2 LiFePo4 batteries are lithium iron phosphate-based and designed for easy replacement, commonly used in golf carts, scissor lifts, utility vehicles, and trolling motors. Known for their high energy density, these batteries offer reliable, long-lasting power. Their compact size and durable construction make them versatile and easy to maintain. GC2 LiFePo4 batteries also charge quickly, providing efficient energy for a variety of Golf cart and equipment.
Brand:
SuperpackProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working DaysSuperpack has developed a series of GC2 lithium iron phosphate battery to replace lead acid battery, which extensively used in
Golf Car, Scissor Lifte,Utility Vehicles, Trolling Motor， Outboard Motor, Lawn Mover,Forklift,Cleaning Machines,Warehouse Tractor,Tow Tractor etc. due to high safety, ultra long life, high energy density, long lasting time,fast charging and eco-friendly With just a simple battery swap.
Intelligent Feature
| Up to 10 Parallel Connections • Scalable capacity up to 300Ah • Additive continuous and peak current • Intelligent battery-to-battery balancing |
Characteristics • Fast charging within 3 hours |
|
|
|
|
Unique BMS Design |
Heat-sink Design • Strategically located • Unique passive cooling • Prevents over-heating of critical components • Plastic housing: ABS+PC • BCI Size GC2 • Enclosure: UL94-V0 & IP67 |
Typical Performance Curve for SPF48V32-GC2
LiFePO4 GC2 Battery Structure
LiFePO4 GC2 Parallel Connection

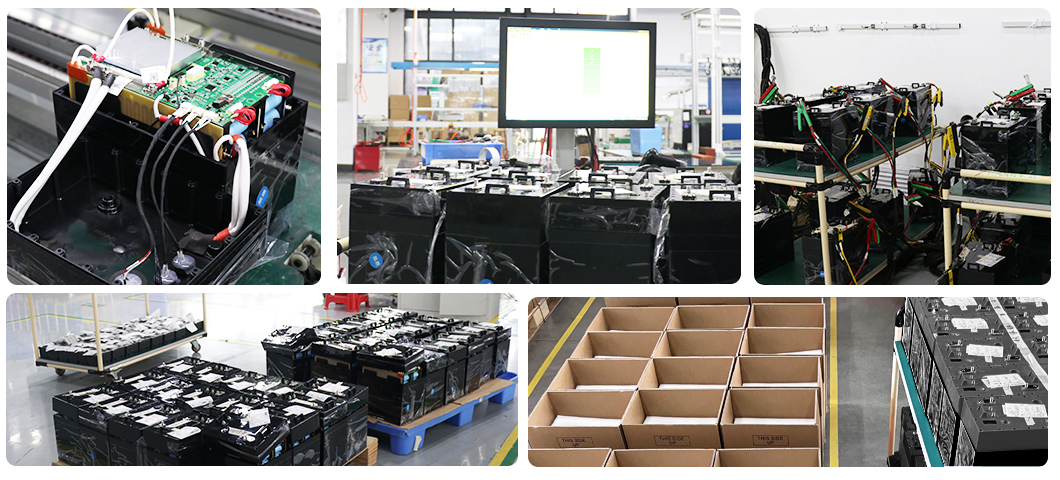

Production line
Application
LiFePO4 Battery in GC2 Size
|
Item |
SPF48V32-GC2 |
SPF24V64-GC2 |
SPF12V128-GC2 |
|
Nominal Voltage |
51.2V |
25.6V |
12.8V |
|
Nominal Capacity |
32Ah |
64Ah |
128Ah |
|
Watt-Hours |
1.638KWh |
||
|
Energy Density |
110Wh/Kg |
||
|
Cycle Life |
6000cycles (DOD80%) |
||
|
Charge Efficiency |
99% |
||
|
Resistance @ 50% SOC |
≤30 mΩ |
≤20 mΩ |
≤15mΩ |
|
Max. Cont. Discharge Current |
60A |
100A |
150A |
|
Peak Discharge Current |
100A |
200A |
250A |
|
Max. Cont. Charge Current |
32A @ 25ºC |
64A @ 25ºC |
128A @ 25ºC |
|
Self-Discharge |
<3% per Month @25ºC in Off mode |
||
|
BCI Size |
260 x 180 x 276mm (10.2” x7.1” x 10.9”) |
||
|
Weight |
15.6Kg (34.3Ibs) |
||
|
Case Material |
ABS+PC |
||
|
Stud Terminal |
M8 x 1.25 - 20 |
||
|
Insert Terminal |
M8 x 1.25 - 20 |
||
|
Torque |
79.7-88.5 in-Ibs. 6.6 -7.4 ft-Ibs 9-10 N-m |
||
|
Handles |
Molded |
||
|
Enclosure Protection |
IP67 |
||
|
Case Flame Rating |
UL94-V0 |
||
|
Charge Temperature Range |
32 ~ 113 ºF (0 ~ 45 ºC) |
||
|
Discharge Temperature Range |
-4 ~ 140 ºF (-20 ~ 60 ºC) |
||
|
Relative Humidity |
25 ~ 85% RH |
||
|
Storage Temperature |
-4°F to 95°F (-20°C to 35°C) |
||
|
Certification |
IEC62133, UL2271, CE, UN38.3 |
||
Deep Cycle Lithium LiFePO4 Battery 48V 100Ah with BMS
Learn More
This product is suitable for Trolling Motor, Goft Cart, Marine, Off Grid Applications, Household Appliances, Medical Equipment, Utility Vehicles, AGVs etc.
Learn More
Tailored as a seamless replacement for conventional lead-acid batteries, it effortlessly integrates into your golf carts. The 72V45Ah epitomizes a state-of-the-art lithium-ion battery pack, boasting an integrated battery system. With the superior energy density of lithium batteries, golf carts can now achieve extended driving ranges and deliver enhanced power to tackle rigorous tasks.
Learn More
Superpack offers easy, plug-and-play LiFePO4 battery solutions for golf cart and utility vehicle. The batteries are with less weight, more power and free maintenance. You can enjoy more mileage on a single charge and stronger acceleration up hills with less charging time. At the same time you can save both money and time for a longer life span.
Learn More
Superpack's 48V56Ah batteries are designed to be easily installed in Club Car and EZ-GO vehicles, allowing for quick drop-in replacement. This simplifies the process of upgrading or replacing batteries without the need for complex modifications.
Learn More
Lithium iron phosphate power batteries are used in electric vehicles with long cycle life and stable performance.
Learn More
[High Capacity and Efficiency] Rated Capacity of 150Ah and a Minimum Capacity of 147Ah ensure that the battery can store and deliver substantial energy, making it ideal for extended use in golf carts and other electric vehicles. [BMS Multiple protection]The Superpack 48V 150Ah golf cart battery features a unique built-in Battery Management System (BMS) that delivers robust protection against overcharging, over-discharging, overcurrent, short circuits, and temperature extremes. This ensures enhanced safety and reliability for your battery during operation. [Cycle Life] Over 4000 cycles, significantly surpassing traditional lead-acid batteries (300-500 cycles), which reduces long-term replacement costs.
Learn More
Rechargeable 12V 200Ah solar batteries Superpack 12V Lithium Iron Phosphate battery is ideal for sealed lead battery replacement. Maximum modules in series: 6 sets
