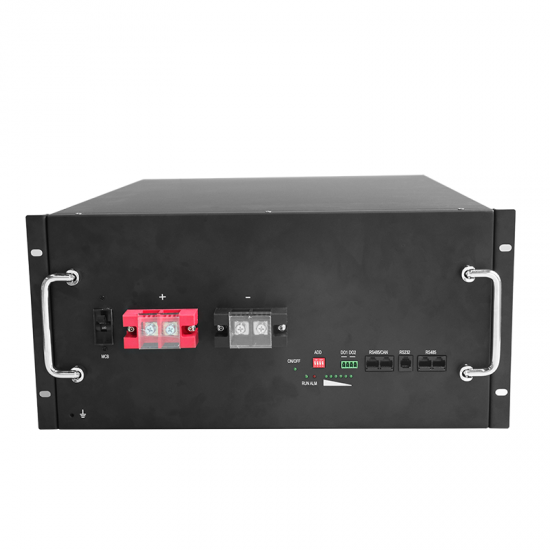

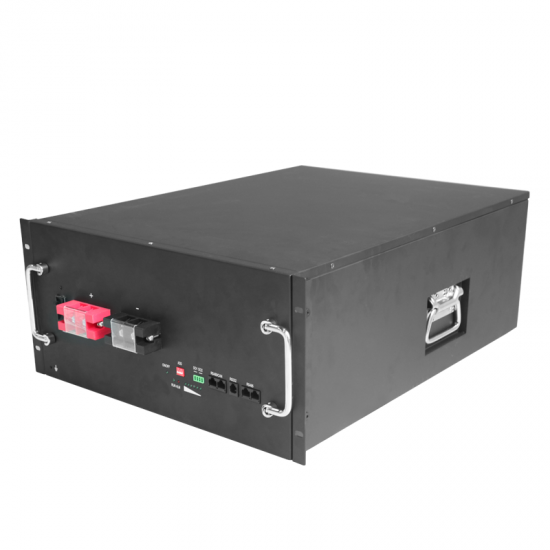

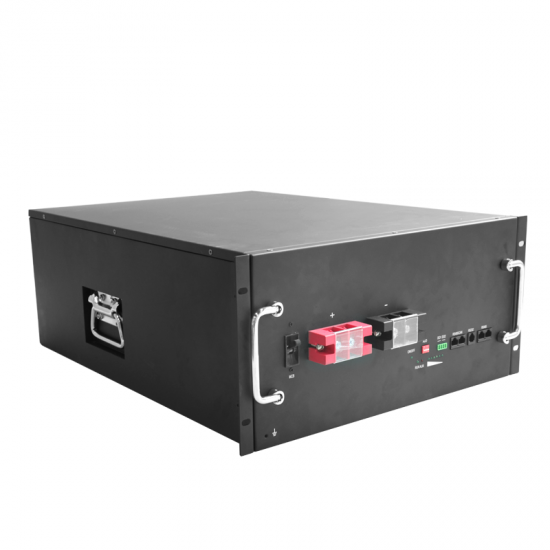

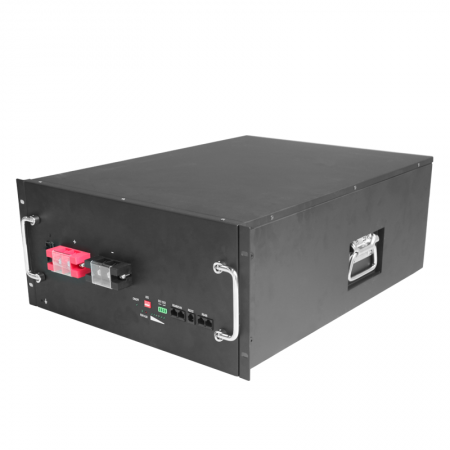

48V 200Ah LiFePO4 batteries for Home Energy storage
Rack energy stroage battery,It can provide energy storage and electricity for families. Its flexible to make the ESS from 5kwh to 80kwh with them for telecom base station,home/small business/base station use
Brand:
SuperpackItem NO.:
SPF48V200-5UProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working Days
Superpack 19” Rack Energy Storage System is a powerful and scalable lithium iron phosphate energy storage system for a wide range of long duration energy storage applications.Besides the standard low voltage energy storage system. This same rack mount battery could be customized as a Higher voltage system.
Advantages
-Quick installation, standard of 19-inch embedded designed module is comfortable for fast installation and maintenance
-Energy scabable from 1~15pcs modules in parallel
- RS485 and CAN compatible
- Intelligent BMS to protect the battery cells - Integrated battery management system (BMS) and control circuits.

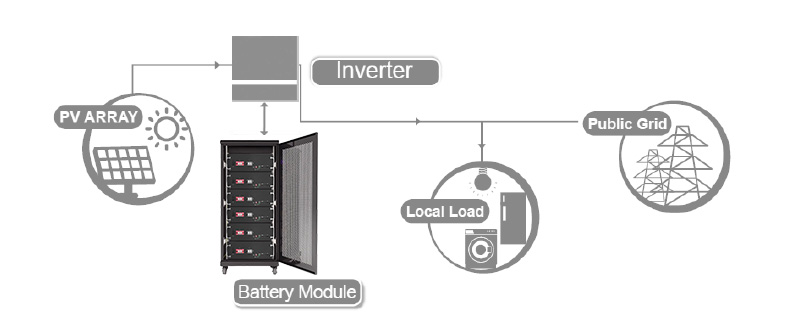

- Can be matched with on/off grid; single/three phases inverter
- Air cooling
5KWH Rack Mounted Energy Storage Battery Specification
| Item | SPF48V200-5U | ||
| Chemistry | LiFePO4 | ||
| Battery Energy | 10.24KWh | ||
| Battery Voltage | 51.2V | ||
| Nominal Capacity | 200Ah | ||
| Operating Voltage Range | 44-58.4V | ||
| Maximum Output Power | 10KW | ||
| Maximum Charging Current | 200A | ||
| Maximum Continuous Discharge Current | 200A | ||
| Parallel Quantity | Max 15pcs | ||
| Designed Life-span | 10 years | ||
| Installation | Standard 19" power cabinet or rackt | ||
| Communication | RS485/CAN | ||
| Matching with Inverters | MEGAREVO/GOODWE/GROWATT/SMA/SUNGROW | ||
| Certification | UL1973, IEC62619, CE61000, UN38.3 | ||
| Charging Temperature Range | 0~50°C | ||
| Discharge Temperature Range | -20-55℃ | ||
| Enclosure Protection | IP20 | ||
| Humidity | ≤85% | ||
| Altitude | ≤2000m | ||
| Application | In door / Out door | ||
| Inverter Choosing | On/Off Grid Single/3 phases inverter | ||
| Heat Management | Air Cooling | ||
Superpack 48v Energy Storage System is widely apply for home and business.
