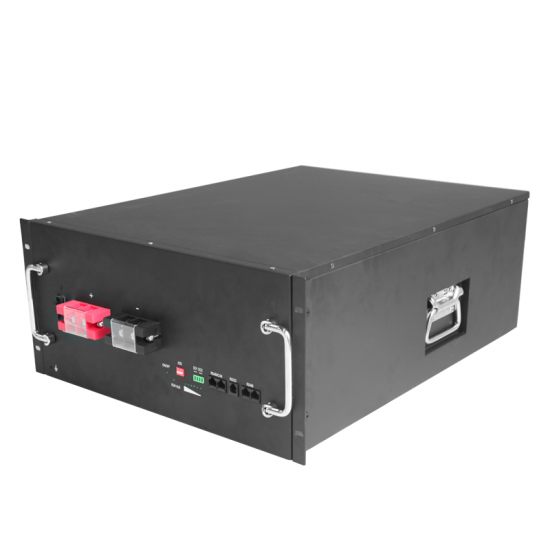

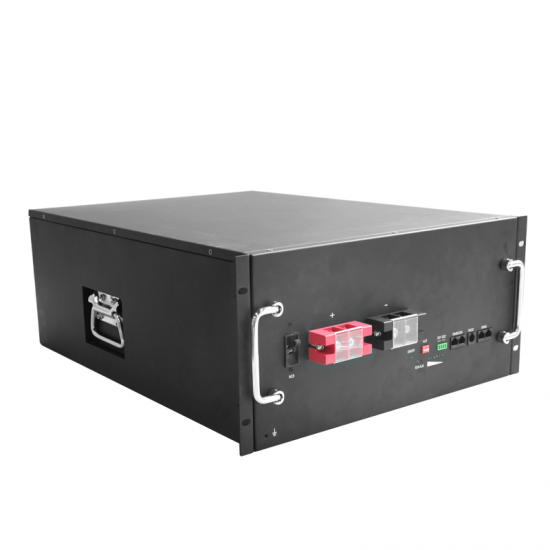

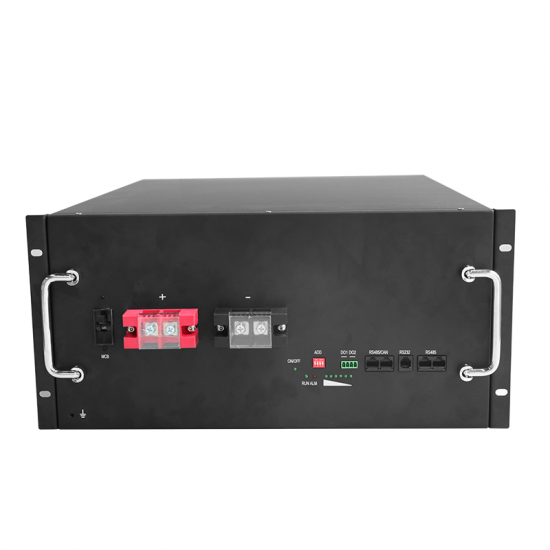

'Superpack' Rack-Mount 3U lithium battery energy storage system, your ultimate solar and storage solution. Our innovative design seamlessly integrates the solar inverter and LiFePO4 battery enclosure into a pre-wired modular system, ensuring a swift and hassle-free installation process. Explore our range of rack-mounted energy storage batteries, featuring a modular design with various 48V configuration options, including 50Ah, 100Ah, 150Ah, and 200Ah battery modules. Experience convenience and efficiency like never before with our cutting-edge energy storage solutions.
Brand:
Superpack
Superpack developed various low-voltage energy storage systems-rack-mounting series.The systems have been widely used in residential/commercial solar energy storage,data center, grid support, solar power station etc. We adopted high safety, ultra long cycle life LiFePO4 cells plus intelligent BMS with perfect protection.
Main Features
● Modularization design 51.2Vdc and rack-mounting
● 1~5U customized and 19" power-cabinet installation
● Energy scabable from 1~15pcs modules in parallel
● High rated output and input up to 1C
● ≥ 6000 cycles life and 10 year warranty
● RS485/CANbus, compatible with main brand inverters
● Can be matched with on/off grid; single/three phases inverter
● Air cooling
● Easy installation
Basic Parameters
| Item | SPF48V100 | SPF48V150-4U | SPF48V200-5U |
| Chemistry | LiFePO4 | ||
| Battery Energy | 5.12KWh | 7.68KWh | 10.24KWh |
| Battery Voltage | 51.2V | ||
| Nominal Capacity | 100Ah | 150Ah | 200Ah |
| Operating Voltage Range | 44-58.4V | ||
| Maximum Output Power | 5KW | 7KW | 10KW |
| Maximum Charging Current | 100A | 150A | 200A |
| Maximum Continuous Discharge Current |
100A | 150A | 200A |
| Cycle Life | 6000 cycles at 80% DOD | ||
| Dimensions (L x W x H) | 482x370x175mm | 482*600*177mm (4U) | 482*600*222(5U) |
| Weight | 42Kg | 65Kg | 90kg |
| Parallel Quantity | Max 15pcs | ||
| Designed Life-span | 10 years | ||
| Installation | Standard 19" power cabinet or rackt | ||
| Communication | RS485/CAN | ||
| Matching with Inverters | MEGAREVO/GOODWE/GROWATT/SMA/SUNGROW | ||
| Certification | UL1973, IEC62619, CE61000, UN38.3 | ||
| Charging Temperature Range | 0~50°C | ||
| Discharge Temperature Range | -20-55℃ | ||
| Enclosure Protection | IP20 | ||
| Humidity | ≤85% | ||
| Altitude | ≤2000m | ||
| Application | In door / Out door | ||
| Inverter Choosing | On/Off Grid Single/3 phases inverter | ||
| Heat Management | Air Cooling | ||
Superpack 48v Energy Storage System is widely apply for home and business.
Learn More

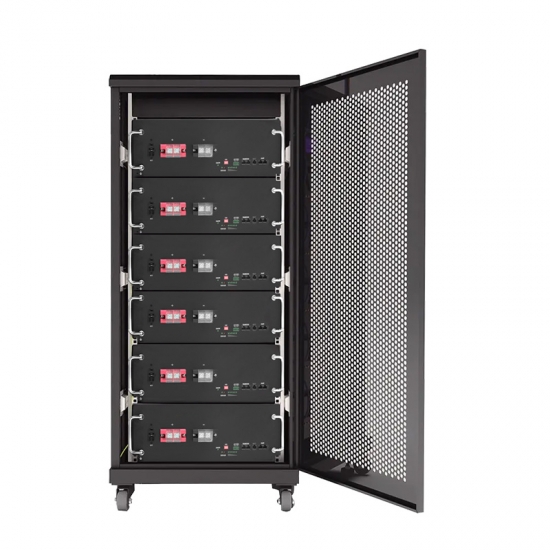

Rack energy stroage battery,It can provide energy storage and electricity for families. Its flexible to make the ESS from 5kwh to 80kwh with them for telecom base station,home/small business/base station use
Learn More
48V100Ah Lithium ion Battery (LiFePO4), deep cycle rechargeable battery, built-in BMS, suitable for energy system, UPS, solar systems and off grid application etc.
Learn More
The 51.2V 100Ah wall-mounted lithium battery pack is designed for small home energy storage systems. This ultra-thin battery pack is easy to install and provides a maximum output of 5KW. Its expandable capacity allows you to connect up to 15 units in parallel, offering a scalable solution for home energy needs.
Learn More
Superpack deep cycle battery 48V 300Ah rechargeable lifepo4 lithium ion battery pack for UPS
Learn More
Rack energy stroage battery,It can provide energy storage and electricity for families. Its flexible to make the ESS from 5kwh to 80kwh with them for telecom base station,home/small business/base station use
Learn More
Superpack 204V high voltage energy storage system custom-designed for commercial and industrial applications. Engineered with cutting-edge technology, it sets a new standard in energy storage for the modern era. This innovative system is designed to cater to the unique needs of commercial and industrial operations, offering unparalleled reliability and efficiency.
Learn More
