48V100Ah Lithium Erengy Storage Battery Module

48V100Ah Energy Storage System
48V100Ah Energy Storage System
48V100Ah Energy Storage System

48V100Ah Lithium Erengy Storage Battery Module

48V100Ah Lithium ion Battery (LiFePO4), deep cycle rechargeable battery, built-in BMS, suitable for energy system, UPS, solar systems and off grid application etc.



  • Brand:

    Superpack
  • Item NO.:

    SPF48V100-3U
  • Product Origin:

    China
  • Color:

    Black
  • Lead Time:

    25-30 Working Days
  • Product Details

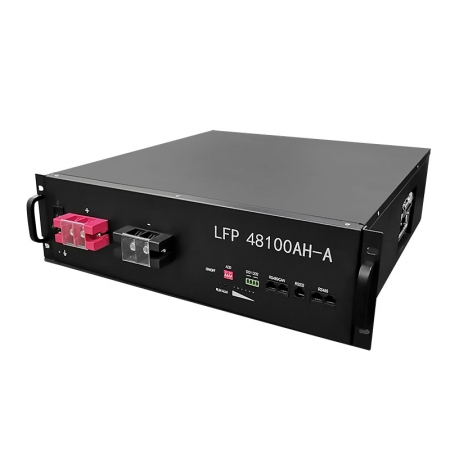

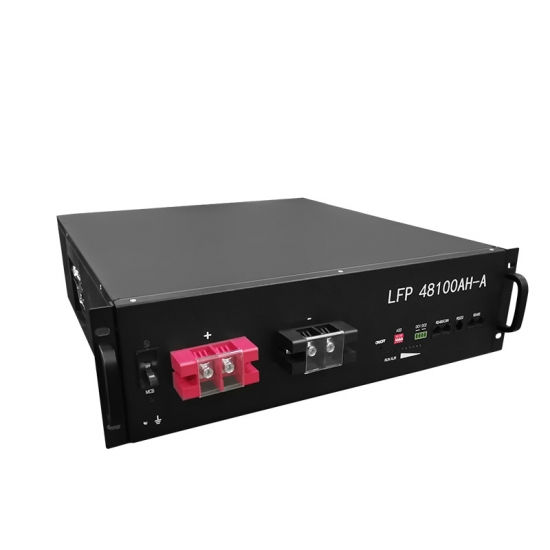

Superpack SPF48V100-3U Lithium Iron Phosphate Battery

SPF48V100-3U Lithium Iron Phosphate Battery Module for Off Grid Application



48V100Ah Lithium ion Battery (LiFePO4), deep cycle rechargeable battery, built-in BMS, suitable for energy system, UPS, solar systems and off grid application etc.


Description:

  • Built-in BMS: Superpack LiFePO4 battery has built-in BMS High temperature resistance can reach 60℃,The built-in high temperature cut-off function,can prevent short circuit, over charge, over discharge, over current. Operating temperature: Charge at 0℃-45℃;Discharge at -20℃-60℃.
  • More Widely Used: Superpack LiFePO4 batteries widely used in electric bike, sightseeing vehicles, golf carts, telecom base station, emergency lighting, UPS backup power supply, home equipment etc.
  • Long Service Life: Lead-acid batteries can only use 200-400 cycles, and lithium deep cycle battery can reach 4000 cycles, and in the state of full charge and full discharge can cycle more than 1500 cycles, the service life of lead-acid battery is 3 times.
  • Light & Practical:Lithium-ion battery weighs only 30% as much as lead-acid battery, only 45kg easy to carry and install.




Parameter:

Model



SPF48V100-3U

Nominal voltage

51.2V

Nominal capacity

100Ah

Energy

5120Wh

Approx. weight:

45Kg

Dimensions (LxWxH)

470*482*130.5mm

Internal resistance

35mΩ



Max. Continuous Discharge Current@25℃

100A



Max. Continuous Charge Current@25℃

100A

Discharge temperature range

-20~60

Storage Temperature(50%SOC)

-20℃ ~ 45℃(3 months)

-20℃ ~ 35℃(6 months)
-20℃ ~ 25℃(12 months)

Charge temperature range

0~45



Peak Discharge Power @25℃,100ms

7.68KW



Max Discharge Power @25℃

5.12KW

Communication protocol



RS232/RS485


Compatible with 48V DC Inverter:

Inverter Brand Inverter Type Communication Application Installation
sunny island 6.0H     Powerwall Battery
Victron energy Multiplus 48V CAN On/off-grid* Powerwall / Rackmount Battery
deye SUN-SG01LP1 series CAN / RS485 On/off-grid* Powerwall / Rackmount Battery
SUN-SG03LP1 series CAN / RS485 On/off-grid* Powerwall / Rackmount Battery
growatt inverter SPH3000 - 6000  CAN  On/off-grid  Powerwall / Rackmount Battery
SPF2000 - 5000   RS485(9600)  On/off-grid  Powerwall / Rackmount Battery
GW-BP  CAN  On/off-grid  Powerwall / Rackmount Battery
SBP GW-ES  CAN  On/off-grid  Powerwall / Rackmount Battery
EM CAN  On/off-grid  Powerwall / Rackmount Battery
Xtender 48V serie CAN  On/off-grid  Powerwall / Rackmount Battery
Voltronic inverter Infinisolar series 48V RS485(9600) On/off-grid  Powerwall / Rackmount Battery
Axpert series 48V RS485(9600) On/off-grid  Powerwall / Rackmount Battery
solis inverter RHI series CAN  On/off-grid  Powerwall / Rackmount Battery
Luxpower LXP Hybrid 6K/8K CAN  On/off-grid  Powerwall / Rackmount Battery
Invt inverter BD series CAN  On/off-grid  Powerwall / Rackmount Battery
Sermatec SMT-5K-TL-LV CAN  On/off-grid  Powerwall / Rackmount Battery
Conext XW Pro series CAN    Debugging in progress
SOFAR HYD series RS485(115200)/CAN   Debugging in progress
Phocos Any-grid PSW-H-5kW-230/48V RS485(9600)   Debugging in progress
SH5K CAN   Debugging in progress
BK-BP Series CAN   Debugging in progress
