Brand:
SuperpackItem NO.:
SP001-215KWhProduct Origin:
ChinaLead Time:

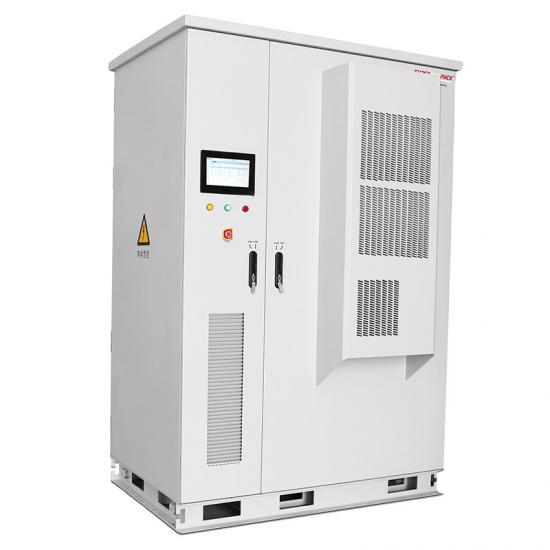

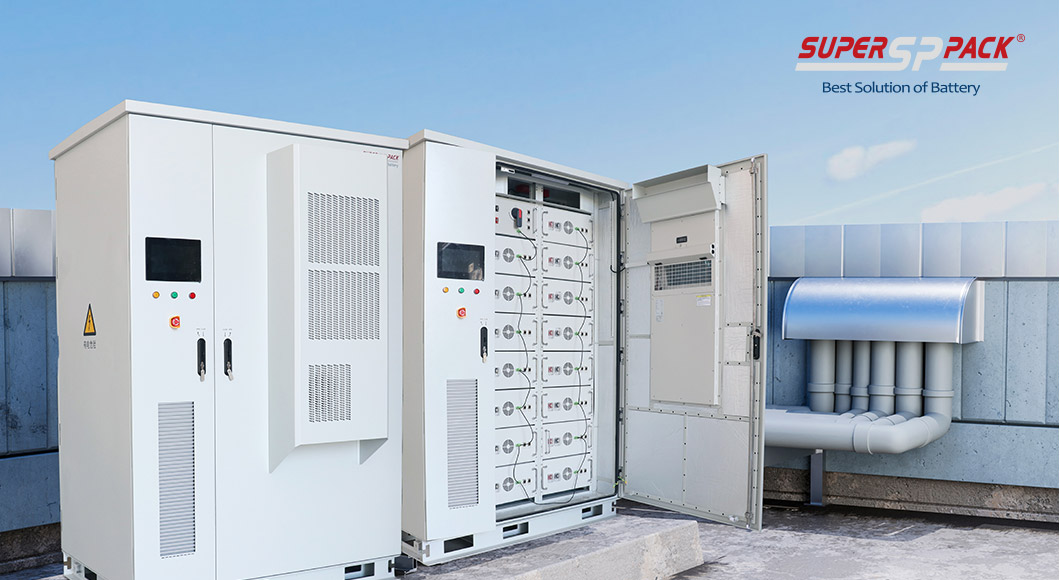

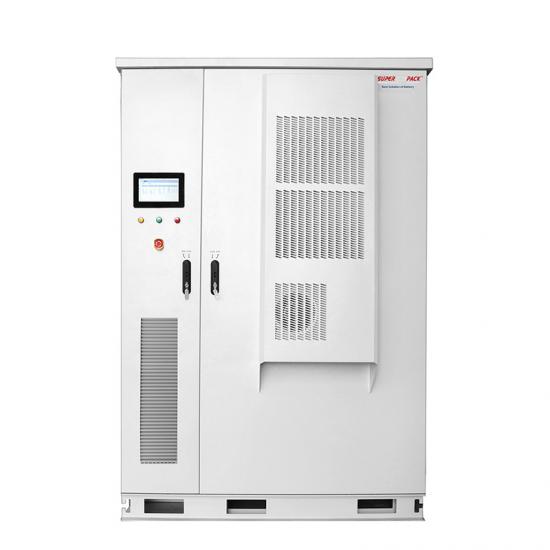

25-30 Working DaysSuperpack's 215kWh battery storage systems, designed for industrial and commercial applications. Tailored for Peak Shifting, Energy Backup, Grid Ancillary Services,Emergency power backup,Emergency power backup,New Energy Integration, and Demand Response, this comprehensive solution is engineered for excellence. With Power Conversion Systems (PCS), Energy Management Systems (EMS), LiFePO4 battery packs, and high-voltage control systems, it's a turnkey solution for seamless deployment to end customers.
Main Features

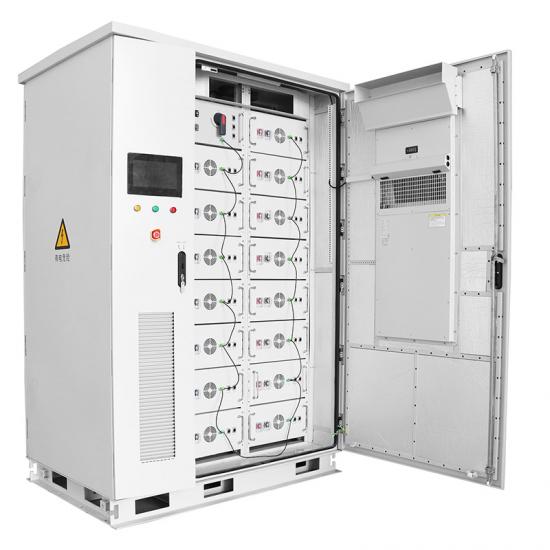

● 10pcs 51.2V LiFePO4 battery module in series + 1pc HV controller, compact design.
● RS485/CANbus, compatible with main brand inverters.
● Easy to install.
● Suitable for 3 phases on/off grid solar energy storage.
● Work with 50kW hybrid inverter.
Specifications:
|
Item |
SP001-215KWh |
|
Cell Chemistry |
LiFePO4 |
|
Battery Module |
SPF51.2V280Ah |
|
Battery Energy |
215.04kWh |
|
Nominal Voltage |
768V |
|
Nominal Capacity |
280Ah |
|
Maximum Charging Current |
140A |
|
Maximum Continuous Discharge Current |
140A |
|
Maximum Output Power |
100kW |
|
HV Controller |
1sets |
|
Module Dimensions (L x W x H) |
2550 x 1050 x 2360mm |
|
Module Weight |
<3.5Ton |
|
Installation |
Standard 19" power cabinet |
|
Operating Voltage Range |
672-871.2V |
|
Cycle Life |
6000 cycles at 80% DOD |
|
Designed Life-span |
10 years |
|
Communication |
RS485/CANbus/Ethernet/WiFi |
|
Charging Temperature Range |
0~50°C |
|
Discharge Temperature Range |
-20~60°C |
|
Enclosure Protection |
IP20 |
|
Humidity |
≤85% |
|
Altitude |
≤2000m |
|
Application |
In door / Out door |
|
Inverter Choosing |
On/Off Grid 3 phases hybrid inverter |
|
Heat Management |
Air cooling |
