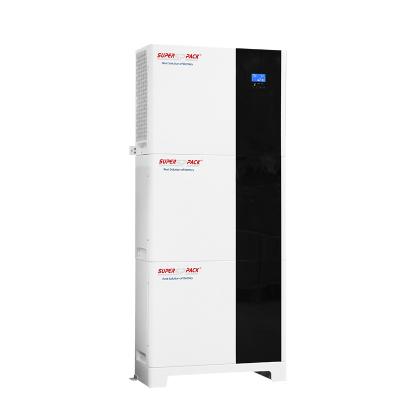

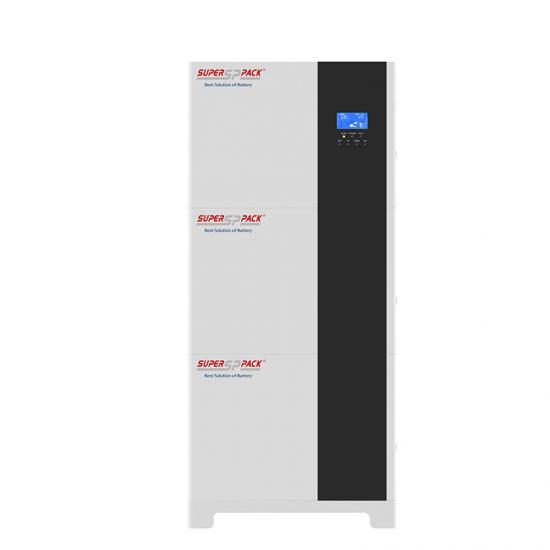

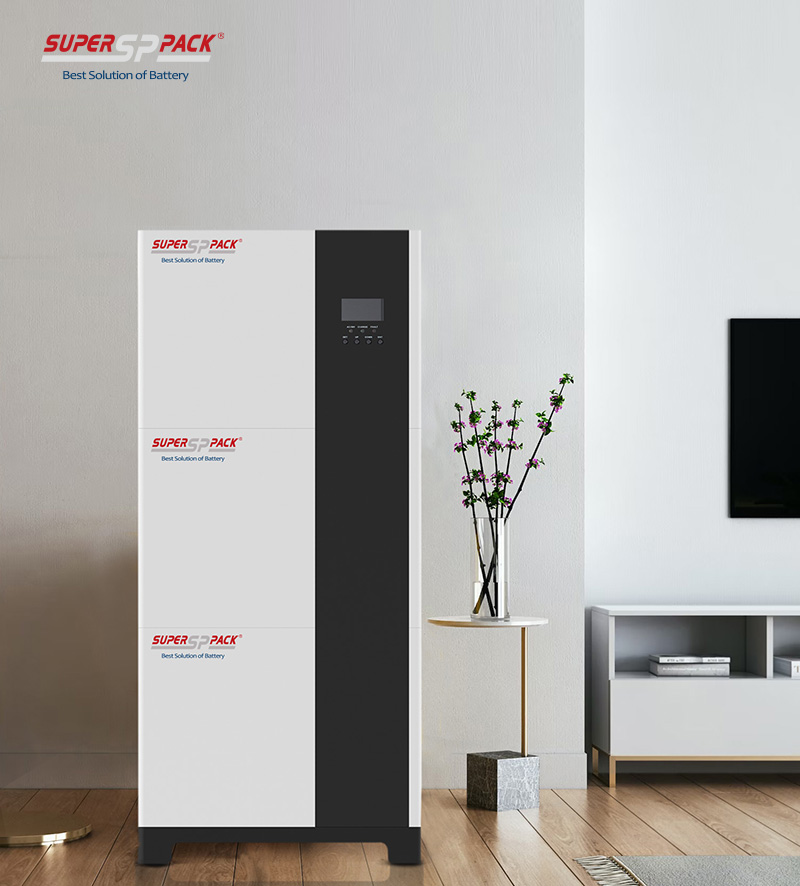

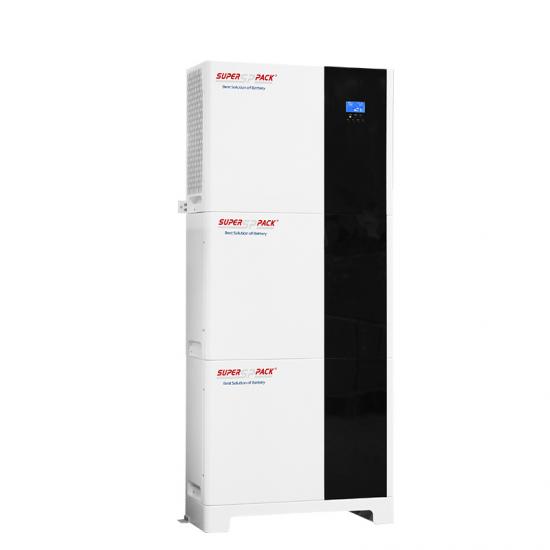

10KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
Brand:
SuperpackItem NO.:
SP-ESS-5K-10K-A2Product Origin:
ChinaColor:
white+BlackLead Time:
25-30 Working Days
Power Control Module
The energy storage system consists of a power control and battery expansion modules. It can store and release electric energy based on the requirements of the inverter management system. The input and output ports of the battery are low-voltage direct current ports. The power control module is an all-in one off-grid system with inverter + MPPT+ AC charger.
Battery Capacity
The battery supports capacity and power expansion. One inverter supports a maximum of four battery expansion modules in parallel from 5KWH to 20KWH. If it needs to expand power to 10KW, it can connect two inverter in parallel, please consult with our engineer before purchase the system.

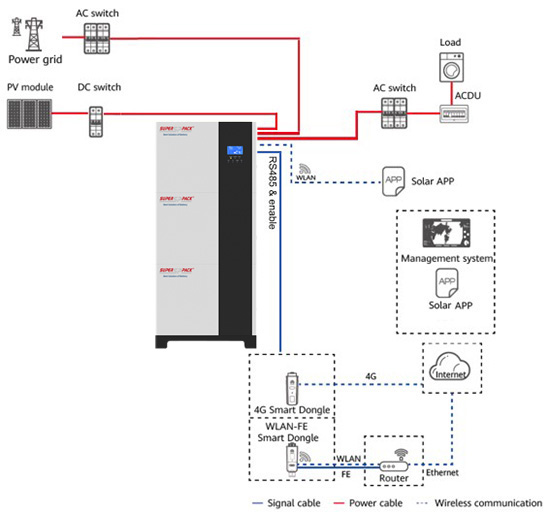

Off-grid ESS Networking
The Off-grid ESS is mainly used in the scenario where there is no grid and the system operates in pure off-grid mode. The pure off-grid ESS stores the generated PV energy in batteries and supplies power to loads when the PV energy is insufficient or there is no PV energy at night.
Main Features
● Solar hybrid inverter + MPPT charging controller + 5kWh 51.2V200Ah LiFePO4 battery modules are integrated.
● The capacity can be expanded from 1 to 3 modules to 5kWh,10kWh and 15kWh.
● Output: single phase, pure sine, AC , 230V/120V is available, 50Hz/60Hz (automatically detected).
● Suitable for global markets.
● Diverse working modes, which can be used for solar energy storage, on/off-peak hours electricity application,
goverment electricity subsidy.
Specifications:
|
Item |
SP-ESS-5K-10K-A2 |
|
BATTERY |
|
|
Battery Module Quantity |
2pc |
|
Battery Energy |
10.24kWh |
|
Battery Capacity |
200Ah |
|
Weight |
135Kg |
|
Dimensions LxDxH |
600×165×1340mm |
|
Cell Chemistry |
LiFePO4 |
|
Battery Rated Voltage |
51.2V |
|
Battery Working Voltage Range |
44.8 ~ 57.6V |
|
Maximum Charging Current |
100A |
|
Maximum Discharging Current |
100A |
|
Designed Life-span |
6000 cycles at 80%DOD |
|
Parallel Quantity |
Maximum 3 Modules |
|
Designed Life-span |
10 Years |
|
PV CHARGE |
|
|
Solar Charge Type |
MPPT |
|
Maximum Output Power |
5kW |
|
PV Charging Current Range |
0~80A |
|
PV Operating Voltage Range |
120~500V |
|
MPPT Voltage Range |
120~450V |
|
AC CHARGE |
|
|
Maximum Charge Power |
3150W |
|
AC Charging Current Range |
0~60A (230V INVERTER); 0~40A (120V INVERTER) |
|
Rated Input Voltage |
220/230Vac (230V INVERTER); 110/120Vac (120V INVERTER) |
|
lnput Voltage Range |
170~280Vac (230V INVERTER); 90~140Vac (120V INVERTER) |
|
AC OUTPUT |
|
|
Rated Output Power |
5kW |
|
Rated Output Current |
30A (230V INVERTER); 42A(120V INVERTER) |
|
Output Voltage Range |
220V/230V (230V INVERTER); 110V/120V(120V INVERTER); 50Hz/60Hz (Automatically) |
|
Overload Current |
35A (230V INVERTER); 45A(120V INVERTER) |
