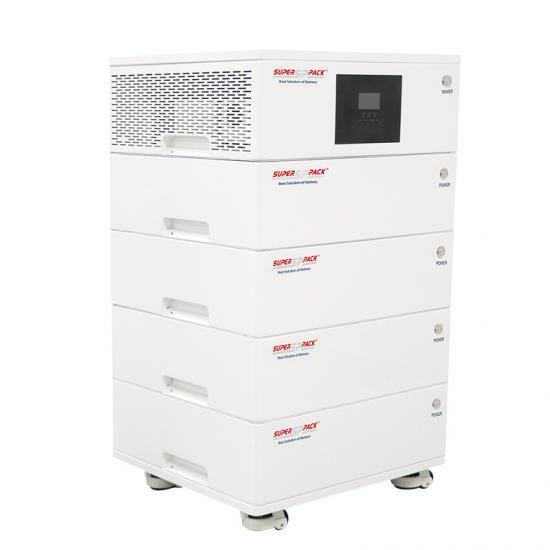

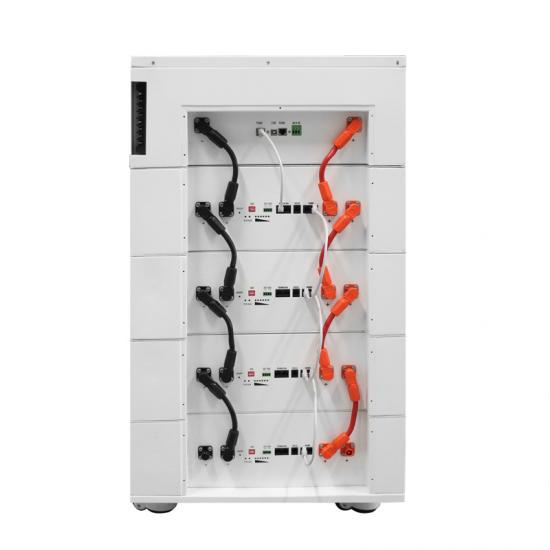

Its SP-ESS-5K-20K-A1 compact and modular design allows for flexible installation options, making it suitable for a wide range of residential properties. you can enjoy more reliable and consistent energy storage, allowing you to maximize the benefits of your solar energy system.Plus, with its smart monitoring and management features, you can easily track your energy usage and optimize your system for maximum efficiency
Brand:
SuperpackItem NO.:
SP-ESS-5K-20K-A1Product Origin:
ChinaColor:
WhiteLead Time:
25-30 Working Days
The Best Energy Storage System Solution
Energy Storage Systems (ESS) for home can provide solutions to many electric-grid challenges.

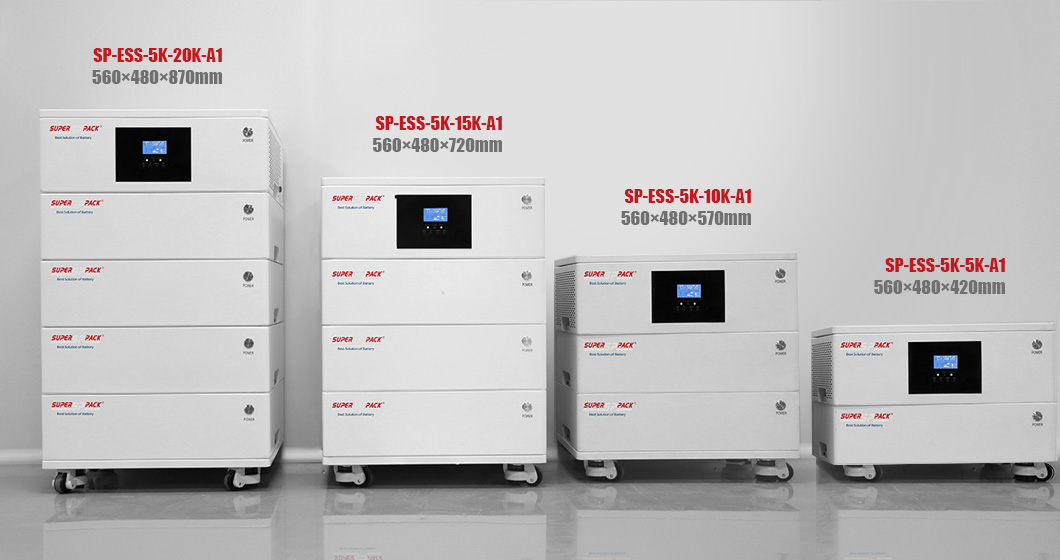

The Superpack is available in many sizes: optional 5kWh,10kWh/15kWh/20kWh. So whatever power and capacity you need, the Superpack have the perfect storage solution for your energy needs.
Play and plug connection saves 40% installation time
Large energy storage capacity up to 20kWh.
Designed life-span 6000 times
Over Voltage/Over Temperature/Overload//Overall Full Protection
Monitor your energy remotely via smartphone APP or web
 |
 |
 |
 |
| Remote Control | Outdoor Rated | Intelligent Energy Management | Fully Certified & Tested |
| App gives you complete control of the energy in your home using real-time data. | Power inverter protect your system even under the most servere conditions. | Meticulously designed to unify the control of your home energy needs. | A grade level quality and fully certified. |
Features:
● The capacity can be expanded from 1 to 4 modules to 5kWh,10kWh, 15kWh and 20kWh.
● Output single phase pure sine wave AC power, 230V/120V is available, 50Hz/60Hz (automatically detected).
● Suitable for global markets.

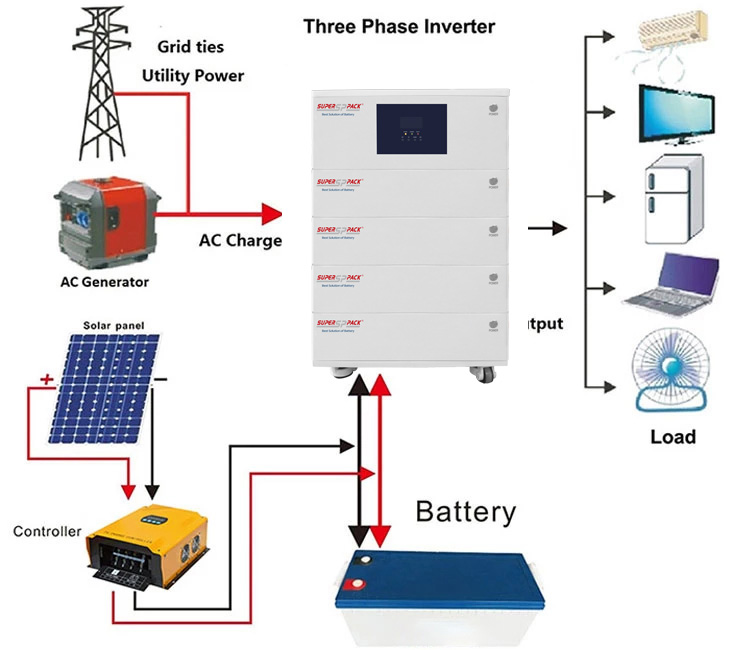

● Diverse working modes, which can be used for solar energy storage, on/off-peak hours electricity application,
goverment electricity subsidy.
|
Item |
SP-ESS-5K-20K-A1 |
|||
|
BATTERY |
||||
|
Battery Module Quantity |
4pcs |
|||
|
Battery Energy |
20.48kWh |
|||
|
Battery Capacity |
400Ah |
|||
|
Weight |
225Kg |
|||
|
Dimensions Lx DxH |
560×480×870mm |
|||
|
Cell Chemistry |
LiFePO4 |
|||
|
Battery Rated Voltage |
51.2V |
|||
|
Battery Working Voltage Range |
44.8 ~ 57.6V |
|||
|
Maximum Charging Current |
100A |
|||
|
Maximum Discharging Current |
100A |
|||
|
Designed Life-span |
6000 Cycles at 80%DOD |
|||
|
Parallel Quantity |
Maximum 4 Modules |
|||
|
Designed Life-span |
10 Years |
|||
|
PV CHARGE |
||||
|
Solar Charge Type |
MPPT |
|||
|
Maximum Output Power |
5kW |
|||
|
PV Charging Current Range |
0~80A |
|||
|
PV Operating Voltage Range |
120~500V |
|||
|
MPPT Voltage Range |
120~450V |
|||
|
AC CHARGE |
||||
|
Maximum Charge Power |
3150W |
|||
|
AC Charging Current Range |
0~60A (230V INVERTER); 0~40A (120V INVERTER) |
|||
|
Rated Input Voltage |
220/230Vac (230V INVERTER); 110/120Vac (120V INVERTER) |
|||
|
lnput Voltage Range |
170~280Vac (230V INVERTER); 90~140Vac (120V INVERTER) |
|||
|
AC OUTPUT |
||||
|
Rated Output Power |
5kW |
|||
|
Rated Output Current |
30A (230V INVERTER); 42A(120V INVERTER) |
|||
|
Output Voltage Range |
220V/230V (230V INVERTER); 110V/120V(120V INVERTER); 50Hz/60Hz (Automatically) | |||
|
Overload Current |
35A (230V INVERTER); 45A(120V INVERTER) |
|||
