•Maximum output is 10KW or 20KW.
•10KWh is suitable for 10KW and 20KWh for 20KW; Single phase or 3 phases on/off hybrid inverter.
•RS485/CANbus, compatible with main brand inverters.
•Easy to install.
Brand:
SuperpackItem NO.:
SPF204V50-HVPayment:
T/T in advanceProduct Origin:
ChinaColor:
whiteLead Time:

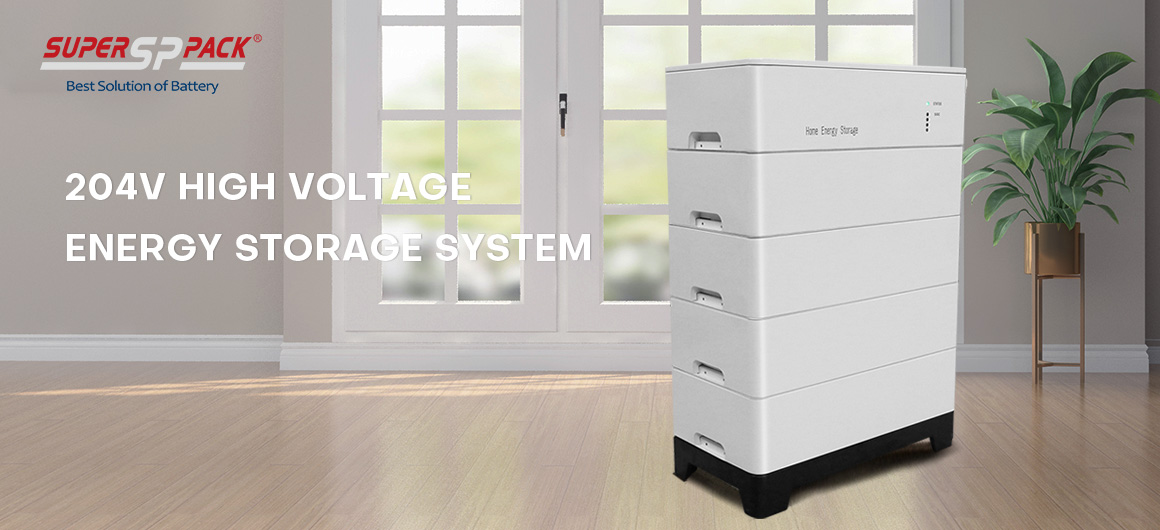

25-30 Working DaysSuperpack 204V high voltage energy storage system custom-designed for commercial and industrial applications. Engineered with cutting-edge technology, it sets a new standard in energy storage for the modern era. This innovative system is designed to cater to the unique needs of commercial and industrial operations, offering unparalleled reliability and efficiency.
Specifications:
|
Item |
SPF204V50-HV |
|
|
BATTERY |
||
|
Cell Chemistry |
LiFePO4 |
|
|
Battery Energy |
10.24kWh |
|
|
Nominal Voltage |
204.8V |
|
|
Nominal Capacity |
50Ah |
|
|
Maximum Charging Current |
50A |
|
|
Maximum Continuous Discharge Current |
50A |
|
|
Maximum Output Power |
10kW |
|
|
HV Controller |
1pc |
|
|
Weight |
108Kg |
|
|
Dimensions (L x W x H) |
560 x 270 x 850mm |
|
|
Operating Voltage Range |
179.2 ~230.4V |
|
|
Cycle Life |
6000 Cycles at 80% DOD |
|
|
Designed Life-span |
10 Years |
|
|
Installation |
Floor Mouned (Horizonal and Stacking) |
|
|
Communication |
RS485/CANbus/Ethernet/WiFi |
|
|
Charging Temperature Range |
0~50°C |
|
|
Discharge Temperature Range |
-20~60°C |
|
|
Enclosure Protection |
IP54 |
|
|
Humidity |
≤85% |
|
|
Altitude |
≤2000m |
|
|
Application |
Indoor |
|
|
Inverter Choosing |
On/Off Grid Single/3 Phases Inverter |
|
|
Heat Management |
Air Cooling |
|
SP-ESS-5K-10K-A1 solar lithium battery system is designed to provide homeowners with a reliable and efficient way to store excess energy generated by their solar panels. This means that you can harness the power of the sun during the day and store it for use during the evening or on cloudy days, reducing your reliance on the grid and saving on energy costs.
Learn More
Energy storage system for home with lithium ion battery 5kWh/10kWh/15kWh/20kWh. The all in one energy storage system includes inverter, controller and batteries.
Learn More
Its SP-ESS-5K-20K-A1 compact and modular design allows for flexible installation options, making it suitable for a wide range of residential properties. you can enjoy more reliable and consistent energy storage, allowing you to maximize the benefits of your solar energy system.Plus, with its smart monitoring and management features, you can easily track your energy usage and optimize your system for maximum efficiency
Learn More
Its SP-ESS-5K-20K-A2 compact and modular design allows for flexible installation options, making it suitable for a wide range of residential properties. you can enjoy more reliable and consistent energy storage, allowing you to maximize the benefits of your solar energy system.Plus, with its smart monitoring and management features, you can easily track your energy usage and optimize your system for maximum efficiency
Learn More
10KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
Learn More
5KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
Learn More
5KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
Learn More
The 51.2V 100Ah wall-mounted lithium battery pack is designed for small home energy storage systems. This ultra-thin battery pack is easy to install and provides a maximum output of 5KW. Its expandable capacity allows you to connect up to 15 units in parallel, offering a scalable solution for home energy needs.
Learn More
