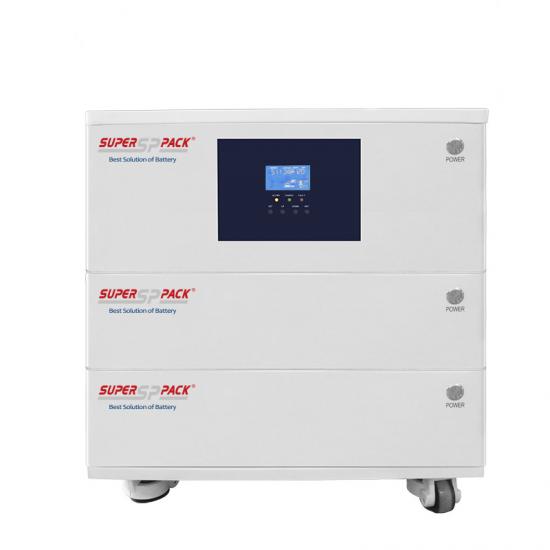

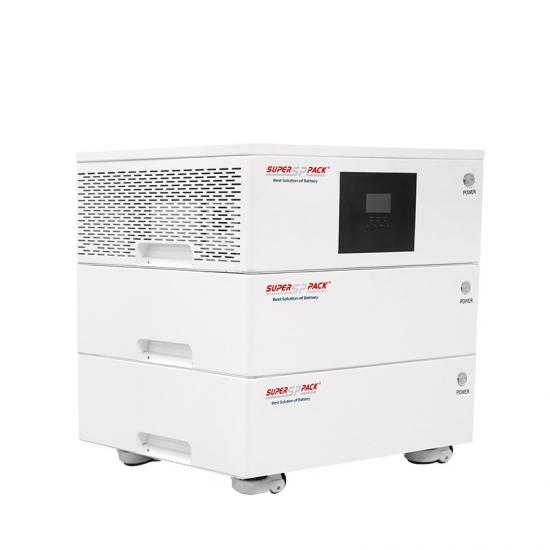

SP-ESS-5K-10K-A1 solar lithium battery system is designed to provide homeowners with a reliable and efficient way to store excess energy generated by their solar panels. This means that you can harness the power of the sun during the day and store it for use during the evening or on cloudy days, reducing your reliance on the grid and saving on energy costs.
Brand:
SuperpackItem NO.:
SP-ESS-5K-10K-A1Product Origin:
ChinaColor:
WhiteLead Time:
25-30 Working Days
The Best Energy Storage System Solution
Energy Storage Systems (ESS) for home can provide solutions to many electric-grid challenges.
The Superpack is available in many sizes: optional 5kWh,10kWh/15kWh/20kWh. So whatever power and capacity you need, the Superpack have the perfect storage solution for your energy needs.
Play and plug connection saves 40% installation time
Large energy storage capacity up to 20kWh.
Designed life-span 6000 times
Over Voltage/Over Temperature/Overload//Overall Full Protection
Monitor your energy remotely via smartphone APP or web
 |
 |
 |
 |
| Remote Control | Outdoor Rated | Intelligent Energy Management | Fully Certified & Tested |
| App gives you complete control of the energy in your home using real-time data. | Power inverter protect your system even under the most servere conditions. | Meticulously designed to unify the control of your home energy needs. | A grade level quality and fully certified. |
Features:

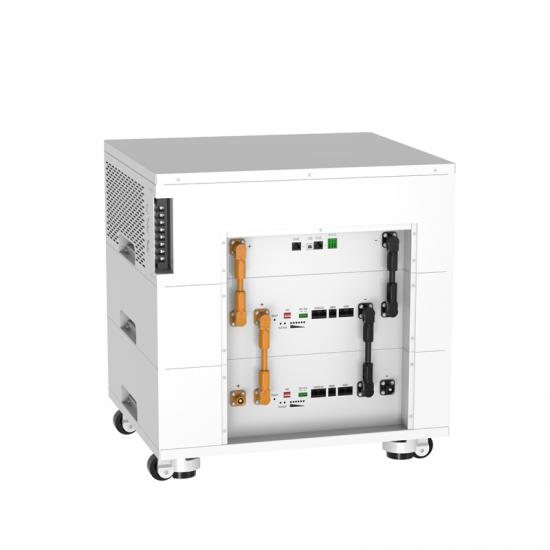

● The capacity can be expanded from 1 to 4 modules to 5kWh,10kWh, 15kWh and 20kWh.
● Output single phase pure sine wave AC power, 230V/120V is available, 50Hz/60Hz (automatically detected).
● Suitable for global markets.
● Diverse working modes, which can be used for solar energy storage, on/off-peak hours electricity application,
goverment electricity subsidy.
|
Item |
SP-ESS-5K-10K-A1 |
|||
|
BATTERY |
||||
|
Battery Module Quantity |
2pc |
|||
|
Battery Energy |
10.24kWh |
|||
|
Battery Capacity |
200Ah |
|||
|
Weight |
127Kg |
|||
|
Dimensions Lx DxH |
560×480×570mm |
|||
|
Cell Chemistry |
LiFePO4 |
|||
|
Battery Rated Voltage |
51.2V |
|||
|
Battery Working Voltage Range |
44.8 ~ 57.6V |
|||
|
Maximum Charging Current |
100A |
|||
|
Maximum Discharging Current |
100A |
|||
|
Designed Life-span |
6000 Cycles at 80%DOD |
|||
|
Parallel Quantity |
Maximum 4 Modules |
|||
|
Designed Life-span |
10 Years |
|||
|
PV CHARGE |
||||
|
Solar Charge Type |
MPPT |
|||
|
Maximum Output Power |
5kW |
|||
|
PV Charging Current Range |
0~80A |
|||
|
PV Operating Voltage Range |
120~500V |
|||
|
MPPT Voltage Range |
120~450V |
|||
|
AC CHARGE |
||||
|
Maximum Charge Power |
3150W |
|||
|
AC Charging Current Range |
0~60A (230V INVERTER); 0~40A (120V INVERTER) |
|||
|
Rated Input Voltage |
220/230Vac (230V INVERTER); 110/120Vac (120V INVERTER) |
|||
|
lnput Voltage Range |
170~280Vac (230V INVERTER); 90~140Vac (120V INVERTER) |
|||
|
AC OUTPUT |
||||
|
Rated Output Power |
5kW |
|||
|
Rated Output Current |
30A (230V INVERTER); 42A(120V INVERTER) |
|||
|
Output Voltage Range |
220V/230V (230V INVERTER); 110V/120V(120V INVERTER); 50Hz/60Hz (Automatically) | |||
|
Overload Current |
35A (230V INVERTER); 45A(120V INVERTER) |
|||
