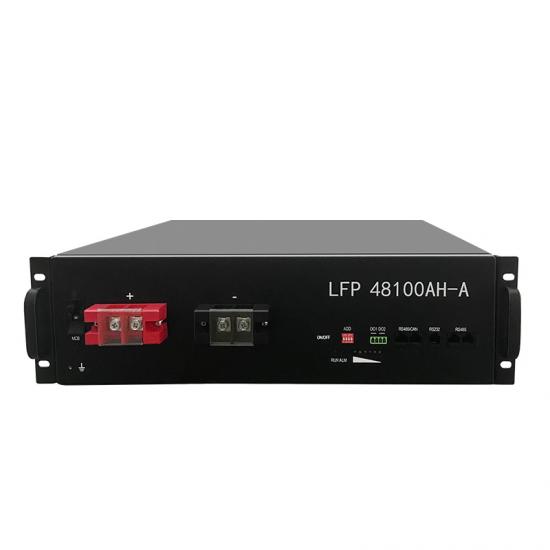

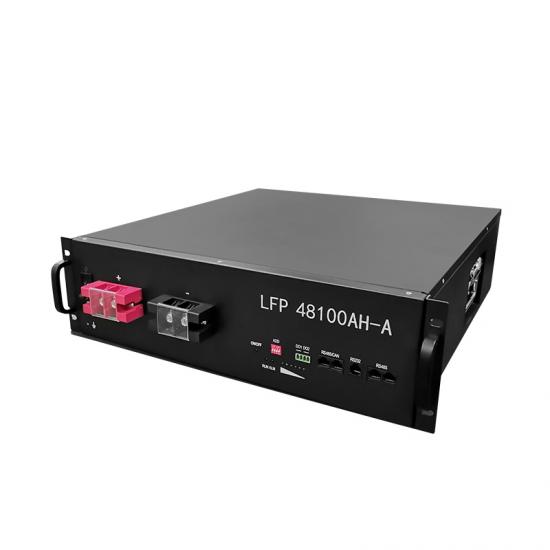

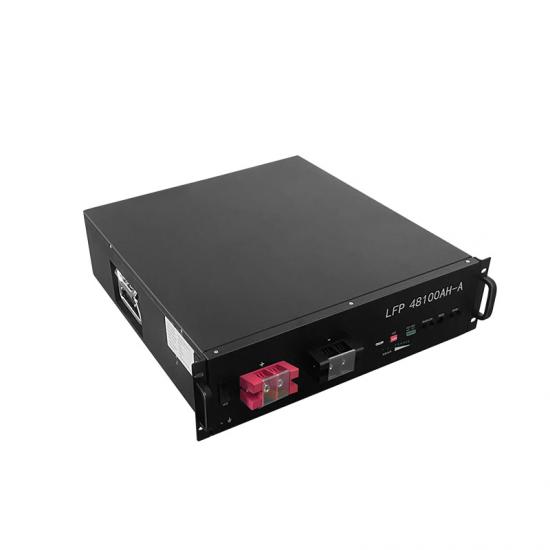

● 5kWh 51.2V100Ah LiFePO4 battery module, compact design.
● Maximum output is 5kW.
● RS485/CANbus, compatible with main brand inverters.
● Maximum 15pcs in parallel to be larger system.
● Easy to install.
● Suitable for indoor/outdoor solar energy storage.
Brand:
SuperpackItem NO.:
SPF48V100-SMPayment:
T/T in advanceProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working Days
Introducing our innovative SPF48V100-SM energy storage battery, Our 5kWh battery module uses extremely safe and long-lasting Lithium Iron Phosphate technology and provides unparallel safety, reliability, and performance;It is specially designed for residential energy storage system to maximizesolar usage, lower the electricity bill and increase energy independence;designed to revolutionize the way you store and utilize energy. Whether installed in a cabinet, stacked, or mounted on the wall, this versatile solution offers unparalleled flexibility to meet your unique energy storage needs.
Application
● Electric vehicles, electric mobility
● Solar/wind energy storage system
● UPS, backup power
● Telecommunication
● Medical equipment
● Lighting
Parameter
|
Item |
SPF48V100-SM |
|
BATTERY |
|
|
Cell Chemistry |
LiFePO4 |
|
Battery Energy |
5.12kWh |
|
Battery Voltage |
51.2V |
|
Nominal Capacity |
100Ah |
|
Operating Voltage Range |
44.8~57.6V |
|
Dimensions (L x W x H) |
482x370x175mm |
|
Weight |
42Kg |
|
Maximum Output Power |
5kW |
|
Maximum Charging Current |
100A |
|
Maximum Continuous Discharge Current |
100A |
|
Cycle Life |
6000 cycles at 80% DOD |
|
Parallel Quantity |
Maximum 15pcs |
|
Designed Life-span |
10 Years |
|
Installation |
Standard 19" Power Cabinet or Rack |
|
Communication |
RS485/CANbus/Ethernet/WiFi |
|
Matching with Inverters |
MEGAREVO/GOODWE/GRWT/SAM/SUNGROW |
|
Certification |
UL1973, IEC62619, CE61000, UN38.3 |
|
Charging Temperature Range |
0~50°C |
|
Discharge Temperature Range |
-20~60°C |
|
Enclosure Protection |
IP20 |
|
Humidity |
≤85% |
|
Altitude |
≤2000m |
|
Application |
Indoor / Outdoor |
|
Inverter Choosing |
On/Off Grid Single/3 phases inverter |
|
Heat Management |
Air Cooling |
SP-ESS-5K-10K-A1 solar lithium battery system is designed to provide homeowners with a reliable and efficient way to store excess energy generated by their solar panels. This means that you can harness the power of the sun during the day and store it for use during the evening or on cloudy days, reducing your reliance on the grid and saving on energy costs.
Learn More
•Maximum output is 10KW or 20KW. •10KWh is suitable for 10KW and 20KWh for 20KW; Single phase or 3 phases on/off hybrid inverter. •RS485/CANbus, compatible with main brand inverters. •Easy to install.
Learn More
Energy storage system for home with lithium ion battery 5kWh/10kWh/15kWh/20kWh. The all in one energy storage system includes inverter, controller and batteries.
Learn More
Its SP-ESS-5K-20K-A1 compact and modular design allows for flexible installation options, making it suitable for a wide range of residential properties. you can enjoy more reliable and consistent energy storage, allowing you to maximize the benefits of your solar energy system.Plus, with its smart monitoring and management features, you can easily track your energy usage and optimize your system for maximum efficiency
Learn More
Its SP-ESS-5K-20K-A2 compact and modular design allows for flexible installation options, making it suitable for a wide range of residential properties. you can enjoy more reliable and consistent energy storage, allowing you to maximize the benefits of your solar energy system.Plus, with its smart monitoring and management features, you can easily track your energy usage and optimize your system for maximum efficiency
Learn More
10KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
Learn More
5KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
Learn More
5KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
Learn More
