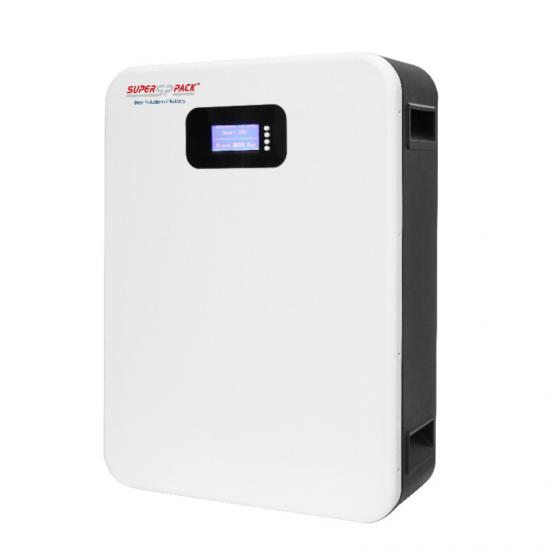

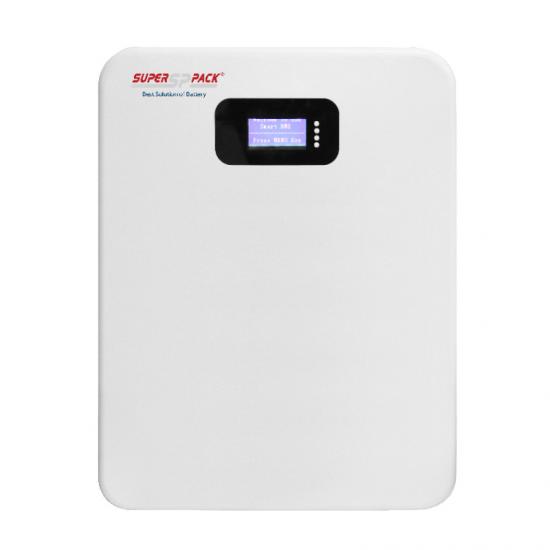

The 51.2V 100Ah wall-mounted lithium battery pack is designed for small home energy storage systems. This ultra-thin battery pack is easy to install and provides a maximum output of 5KW. Its expandable capacity allows you to connect up to 15 units in parallel, offering a scalable solution for home energy needs.
Brand:
SuperpackItem NO.:
SP-ESS-5KWH-B1Product Origin:
ChinaColor:
whiteLead Time:
25-30 Working Days
The 51.2V100Ah wall style lithium battery pack is utra-thin design and easy installation.Multiple parallel configuration, up to 12 units, Advanced BMS control, The product can provide flexible and effective power system solutions for solar lithium batteries.;it would be the best choice for householders. Use your stored power anytime you want it day or night and lower those energy bills
Features
● 5kWh 51.2V100Ah LiFePO4 battery module.
● Maximum output is 5kW.
● The capacity can be expanded up to 15pcs in parallel.
● RS485/CANbus is available, compatible with main brand inverters.
● Easy to install.
Applications
• Residential energy storage system
• Off-grid energy storage
• Micro-grid applications
• UPS power supply

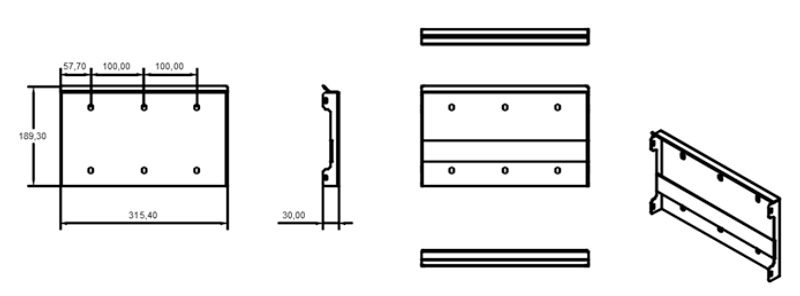

Installation

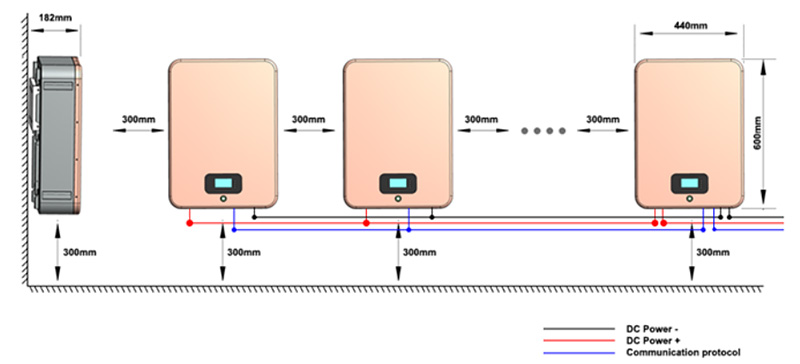

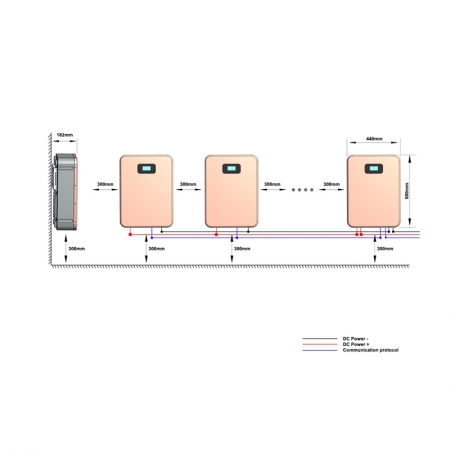

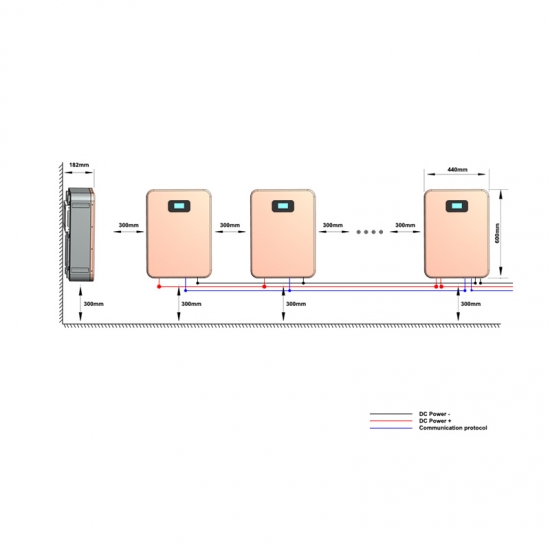

Wall Mounting Space
Specifications
|
Item |
SP-ESS-5kWh-B1 |
|
BATTERY |
|
|
Cell Chemistry |
LiFePO4 |
|
Battery Energy |
5.12kWh |
|
Battery Voltage |
51.2V |
|
Nominal Capacity |
100Ah |
|
Operating Voltage Range |
44.8~57.6V |
|
Maximum Output Power |
5kW |
|
Maximum Charging Current |
100A |
|
Maximum Continuous Discharge Current |
100A |
|
Cycle Life |
6000 Cycles (DOD80%) |
|
Dimensions (L x W x H) |
440x182x600mm |
|
Weight |
54Kg |
|
Parallel Quantity |
Maximum 15 Modules |
|
Designed Life-span |
10 years |
|
Installation |
Wall Mounted |
|
Communication |
RS485/CANbus/Ethernet/WiFi |
|
Matching with Inverters |
MEGAREVO/GOODWE/GRWT/SAM/SUNGROW |
|
Certification |
UL1973, IEC62619, CE61000, UN38.3 |
|
Charging Temperature Range |
0~50°C |
|
Discharge Temperature Range |
-20~60°C |
|
Enclosure Protection |
IP54 |
|
Humidity |
≤85% |
|
Altitude |
≤2000m |
|
Application |
Indoor |
|
Inverter Choosing |
On/Off Grid Single/3 Phases Inverter |
|
Heat Management |
Air Cooling |
